Home >> Mitsubishi >> 2021 >> Mirage SE >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> Circuit Diagrams W/ Connector End Views >> Accessory Socket

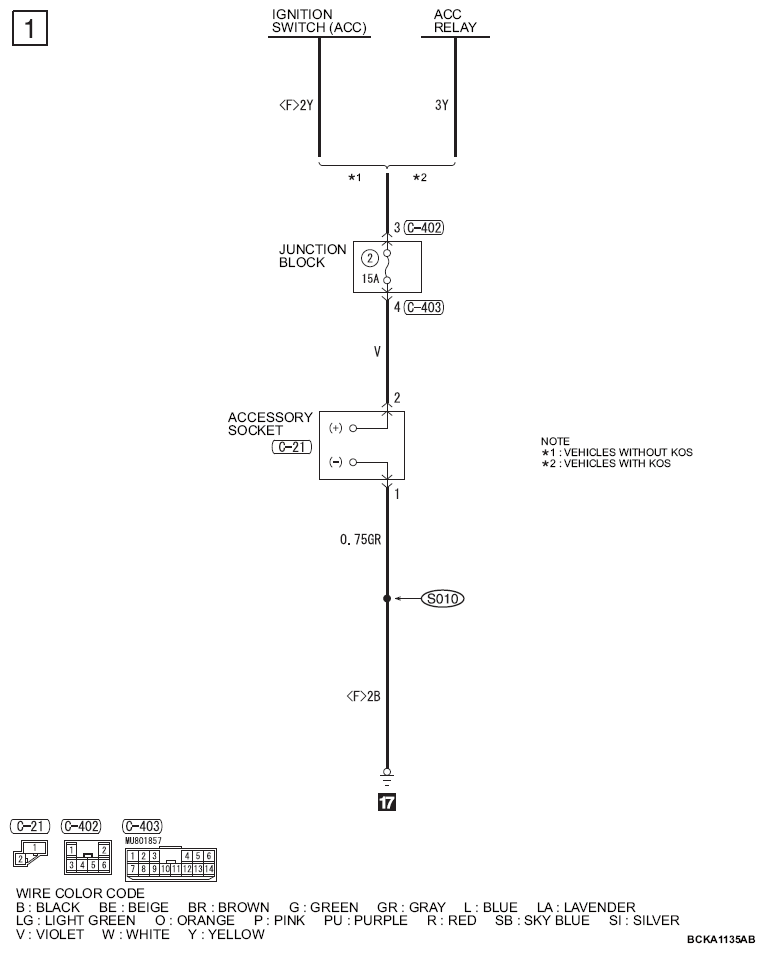

Accessory Socket

G13752003

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
