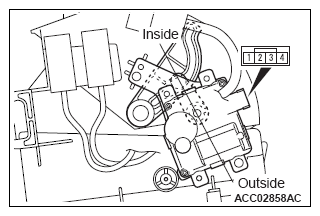

Check The Outside/Inside Air Selection Damper Control Motor

CAUTION: Stop energizing when the lever is set to the operation stopping position.

MOTOR CONNECTION INSPECTION

Positive battery terminal connection	Negative battery terminal connection	Lever operation
1	3	Rotate to the inside.
1	4	Rotate to the outside.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
