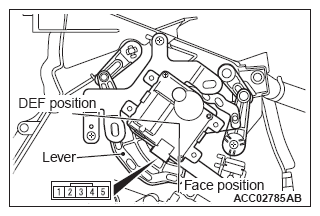

Check The Mode Selection Damper Control Motor And Potentiometer
CAUTION:
Stop energizing when the lever is set to the operation stopping position.
MOTOR CONNECTION INSPECTION
| Positive battery terminal connection | Negative battery terminal connection | Lever operation |
|---|---|---|
| 1 | 2 | Rotate to the FACE side |
| 2 | 1 | Rotate to the DEF side |
Potentiometer check
When the resistance value between connector terminals 3 and 4 is measured while checking the motor, check that the resistance value changes gradually within the standard value.
Standard value: 1.20 (FACE) - 4.80 (DEF) kΩ
