>>E<< Transaxle Case Assembly Installation
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Squeeze sealant evenly onto the transaxle case assembly. Do not leave gaps or excess amounts, otherwise oil leaks are likely.

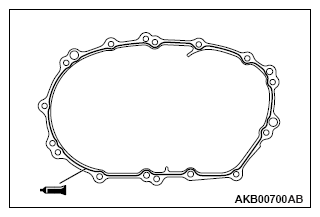

- Apply a 1.2 mm (0.05 inch) diameter bead of specified sealant as illustrated onto the transaxle case assembly.
Specified sealant: MITSUBISHI GENUINE PART Number MZ100388 or equivalent
NOTE: Be sure to install the transaxle case assembly onto the clutch housing case while the sealant is still wet (within 10 minutes). - Tighten the transaxle case mounting bolts to the specified torque.
Tightening torque: 30 ± 5 N.m (22 ± 3 ft-lb)
NOTE: After installation, keep the sealed area away from the oil for approximately one hour.
