Valve Clearance Measurement

Measure the valve clearance as illustrated.

1. Set the special tool MB992000 to the crankshaft, and install the crankshaft pulley center bolt and washer.

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   CAUTION: The crankshaft should always be rotated clockwise.

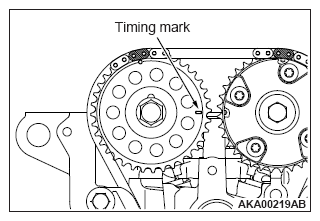

2. Rotate the crankshaft clockwise until the mark on the camshaft sprocket exhaust is aligned with the mark on the upper surface of cylinder head (Set the number 1 cylinder to TDC on the compression stroke).

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

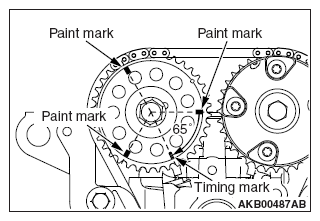

3. Make paint marks on three places at the camshaft sprocket exhaust by means of the following procedure as shown in the illustration.
   1. Make a paint mark on the place of 65 degree angle (6.5th tooth) in the counterclockwise direction of the timing mark.
   2. Moreover, make a paint mark on the place of 120 degree angle (12th tooth).
   3. Also, make a paint mark on the place of 120 degree angle (12th tooth).
      NOTE: The space between the teeth of the camshaft sprocket exhaust is 10 degree angle.

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

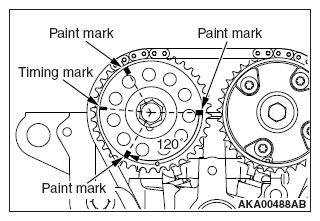

4. Turn the crankshaft clockwise and locate the paint mark of the camshaft sprocket exhaust on the upper surface of the cylinder head as shown in the illustration.

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

5. The valve clearances (arrows) shown in the illustration are measured.

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

6. Using a thickness gauge, measure the clearance between the cam base circle and the valve tappet. If the measured value does not conform to the standard value, record the measured value.

   Standard value (cold engine):

   Intake valve 0.22 ± 0.04 mm (0.009 ± 0.001 inch)

   Exhaust valve 0.30 ± 0.04 mm (0.012 ± 0.001 inch)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

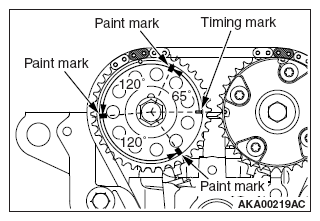

7. Turn the crankshaft clockwise and locate the paint mark of the camshaft sprocket exhaust on the upper surface of the cylinder head as shown in the illustration.

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

8. Measure the valve clearance at the location shown in the illustration with an arrow.

   If the measured value does not conform to the standard value, record the measured value.

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

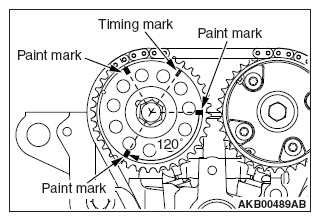

9. Turn the crankshaft clockwise and locate the paint mark of the camshaft sprocket exhaust on the upper surface of the cylinder head as shown in the illustration.

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

10. Measure the valve clearance at the location shown in the illustration with an arrow.
11. If the measured value does not conform to the standard value, record the measured value.
12. Replace the valve tappet for the valve whose clearance is out of the standard value.
    NOTE: Valve tappets are available in 31 sizes, at 0.02 mm (0.0008 inch) intervals in the 5.10 - 5.70 mm (0.2008 - 0.2244 inch) range.

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

13. Valve tappets should be selected in the following manner.
    1. Remove the valve tappet and measure its thickness.
    2. Calculate the correct thickness for a new valve tappet as follows that achieves the standard valve clearance.
       1. Thickness of new valve tappet
       2. Thickness of old valve tappet
       3. Measured valve clearance

          Equation:

          Intake valve: A = B + [C - 0.22 mm (0.009 in)]

          Exhaust valve: A = B + [C - 0.30 mm (0.012 in)]

    For removal and installation procedures for the valve tappet, refer to REMOVAL AND INSTALLATION  .
