Engine Overhaul: Camshaft: Inspection: Camshaft

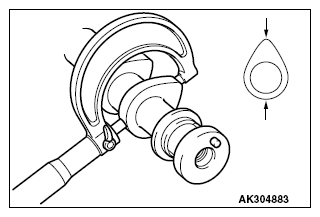

Measure the cam height. If the measured value exceeds the limit, replace the camshaft.
Standard value:
<M/T>
Intake: 44.81 mm (1.764 inches)
Exhaust: 43.98 mm (1.731 inches)
<CVT>
Intake: 44.86 mm (1.766 inches)
Exhaust: 43.98 mm (1.731 inches)
Limit:
<M/T>
Intake: 44.31 mm (1.744 inches)
Exhaust: 43.48 mm (1.712 inches)
<CVT>
Intake: 44.36 mm (1.746 inches)
Exhaust: 43.48 mm (1.712 inches)
