Configuration Diagrams: Floor

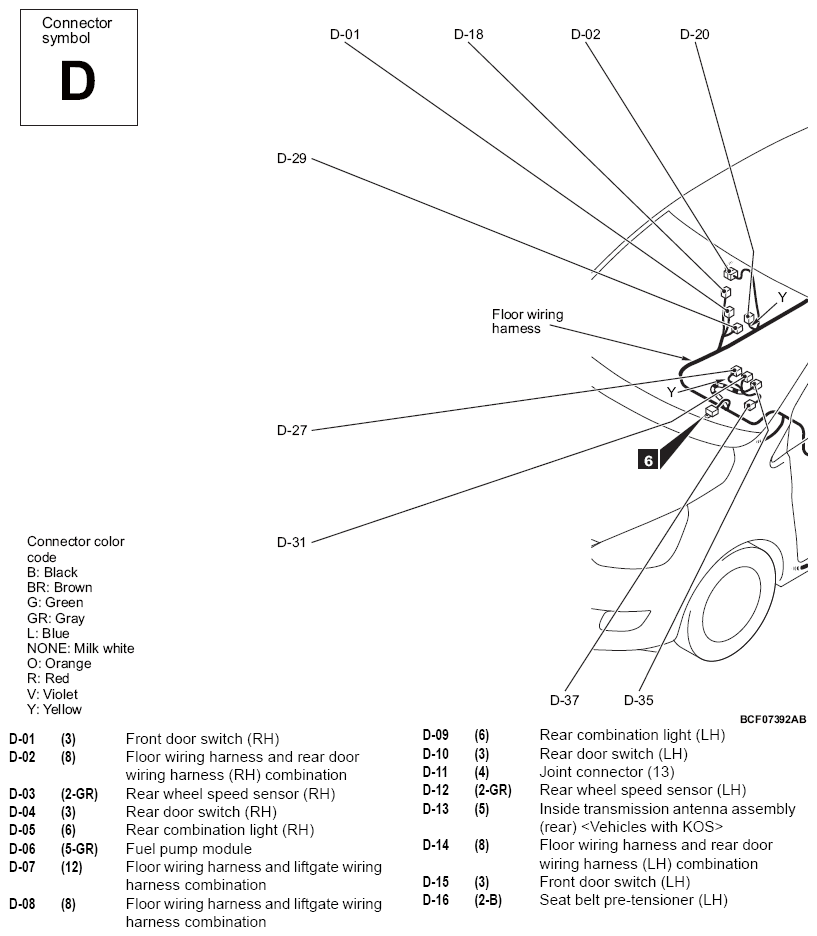

G13751814

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

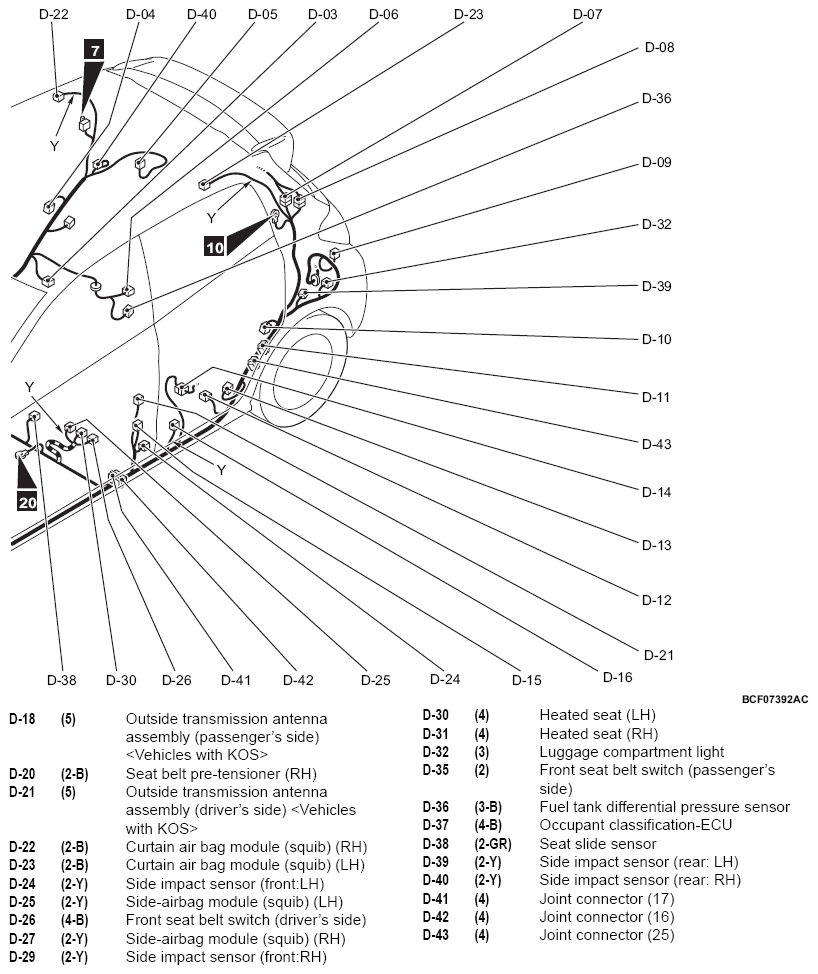

G13751815

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
