Configuration Diagrams: Door

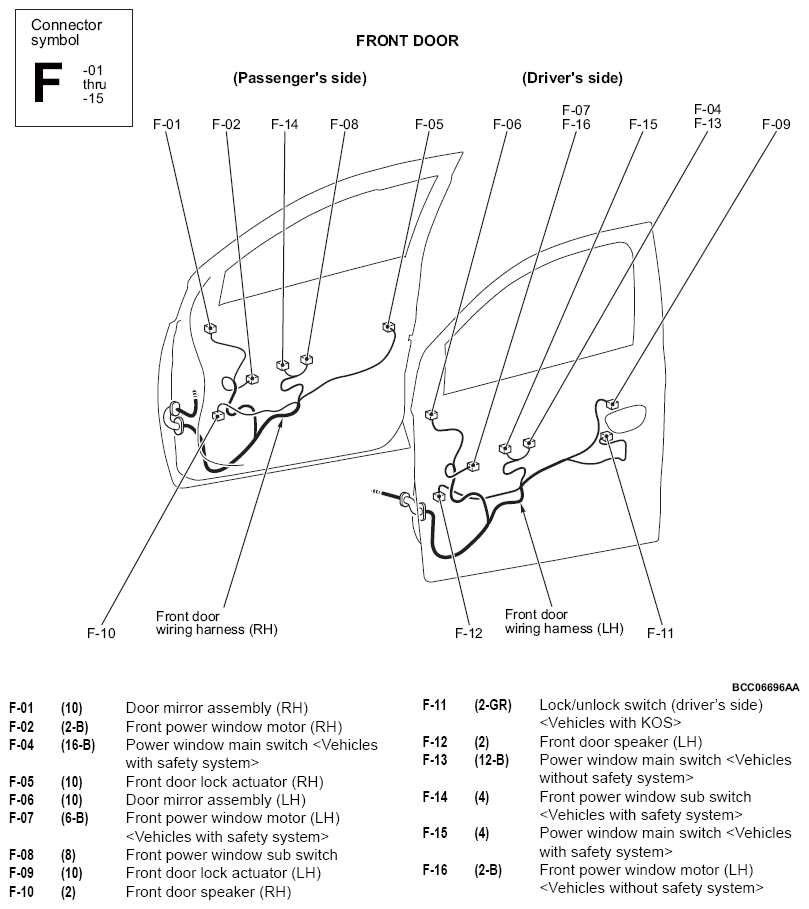

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION:

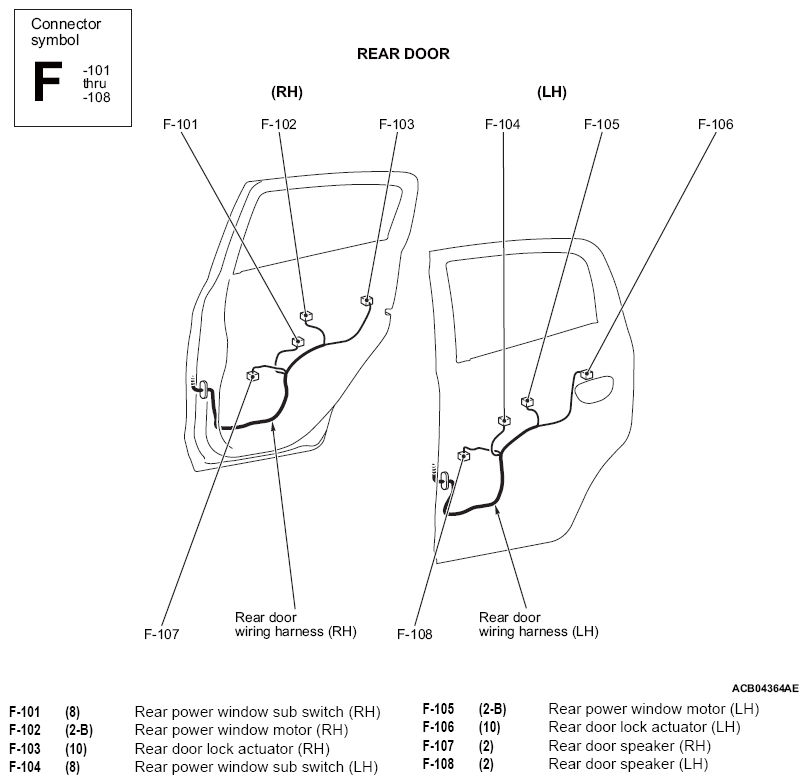

Aluminium wires are partially used for the rear door wiring harness.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
