Home >> Mitsubishi >> 2021 >> Mirage SE >> Repair and Diagnosis >> Electrical >> Body Electrical >> Circuit Diagrams W/ Connector End Views >> Shift Lock Mechanism

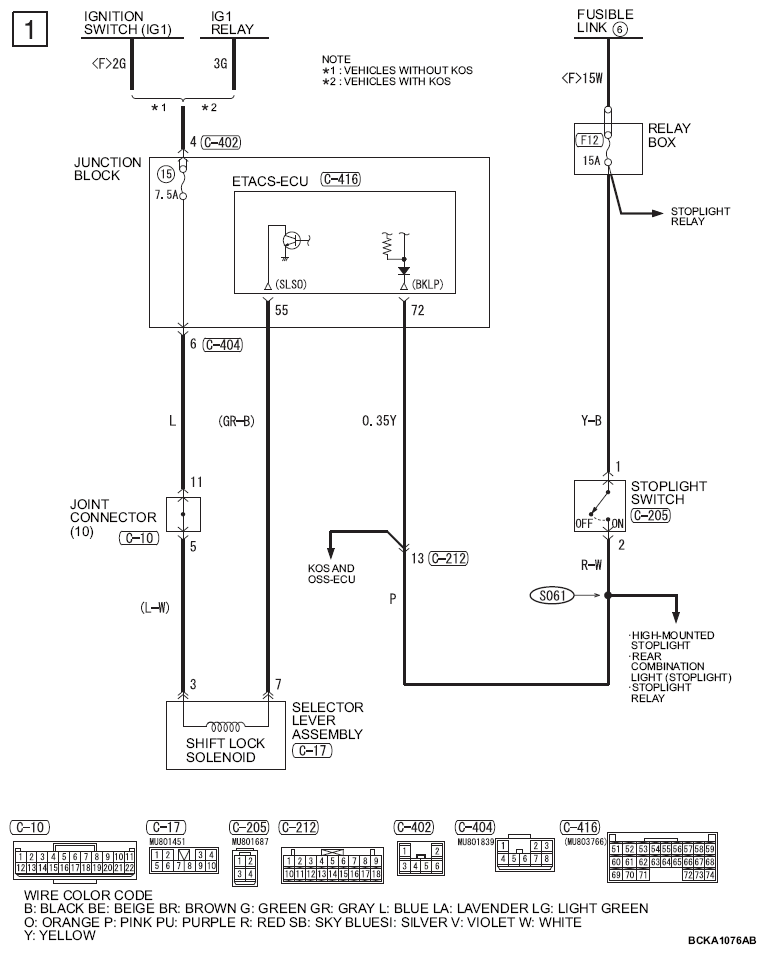

Shift Lock Mechanism

G13751903

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
