Home >> Mitsubishi >> 2021 >> Mirage SE >> Repair and Diagnosis >> Electrical >> Body Electrical >> Circuit Diagrams W/ Connector End Views >> Rear View Camera

Rear View Camera

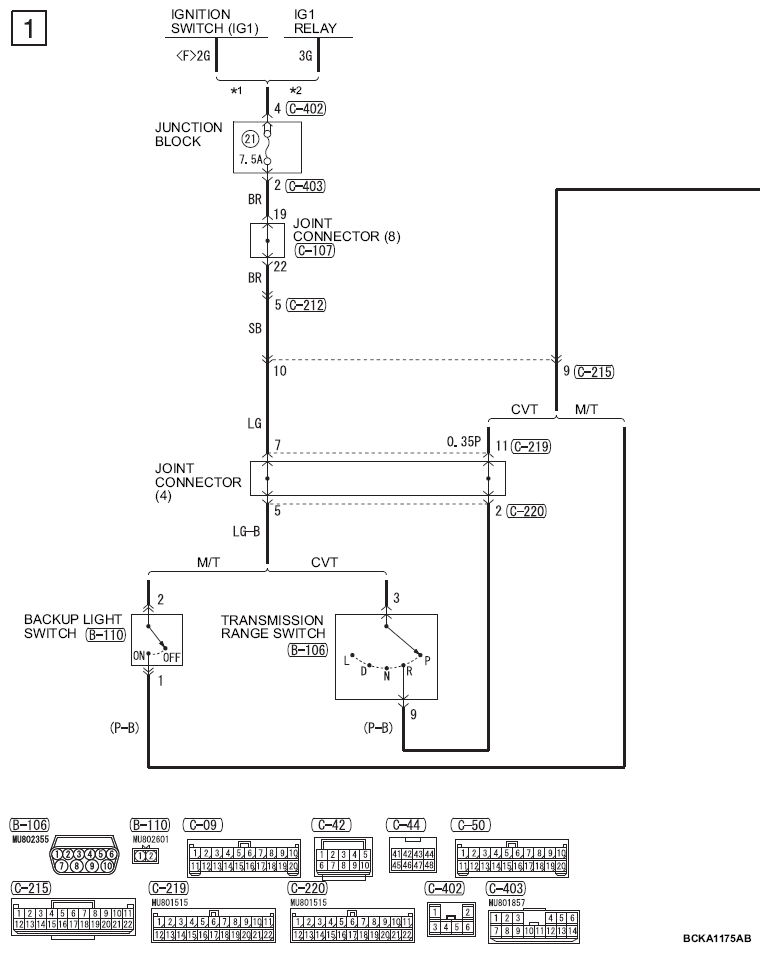

G13752075Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

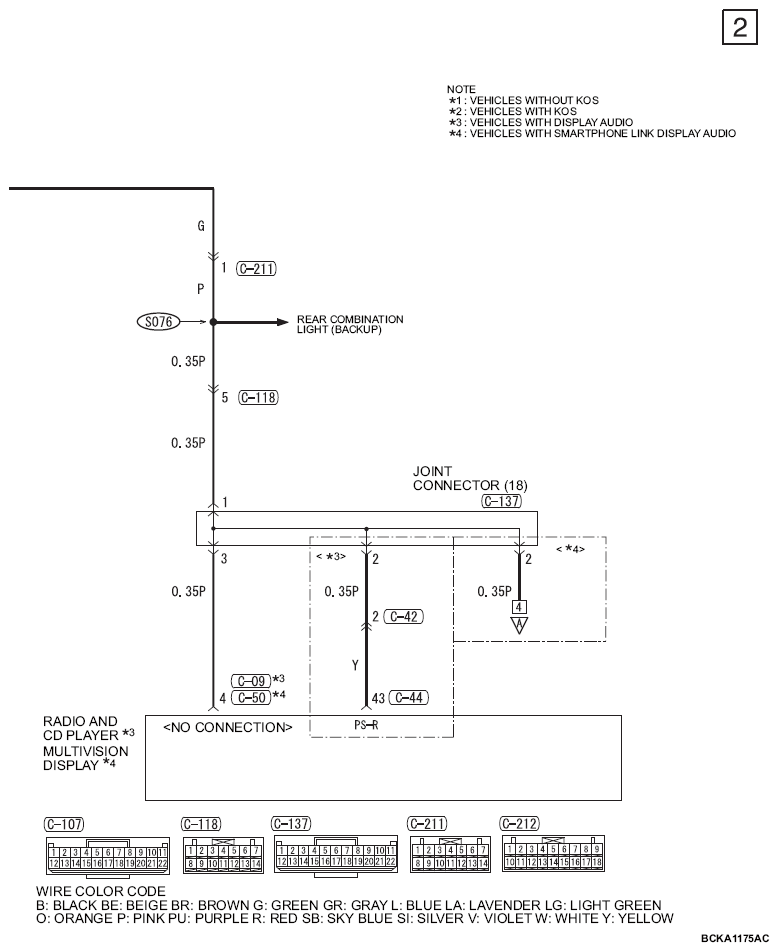

G13752076Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

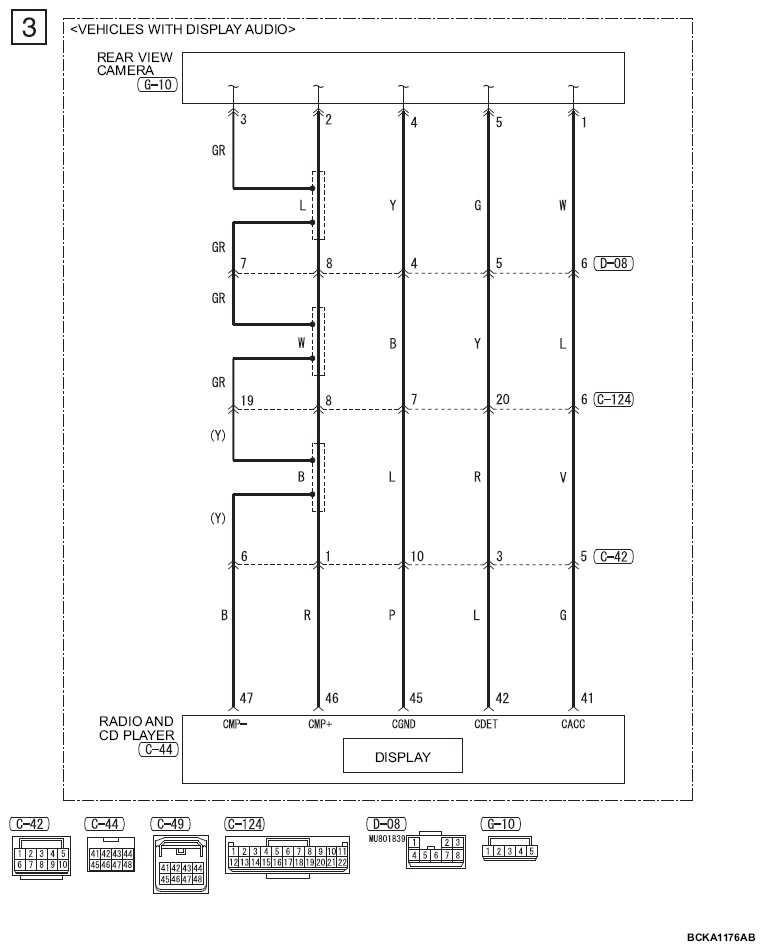

G13752077Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

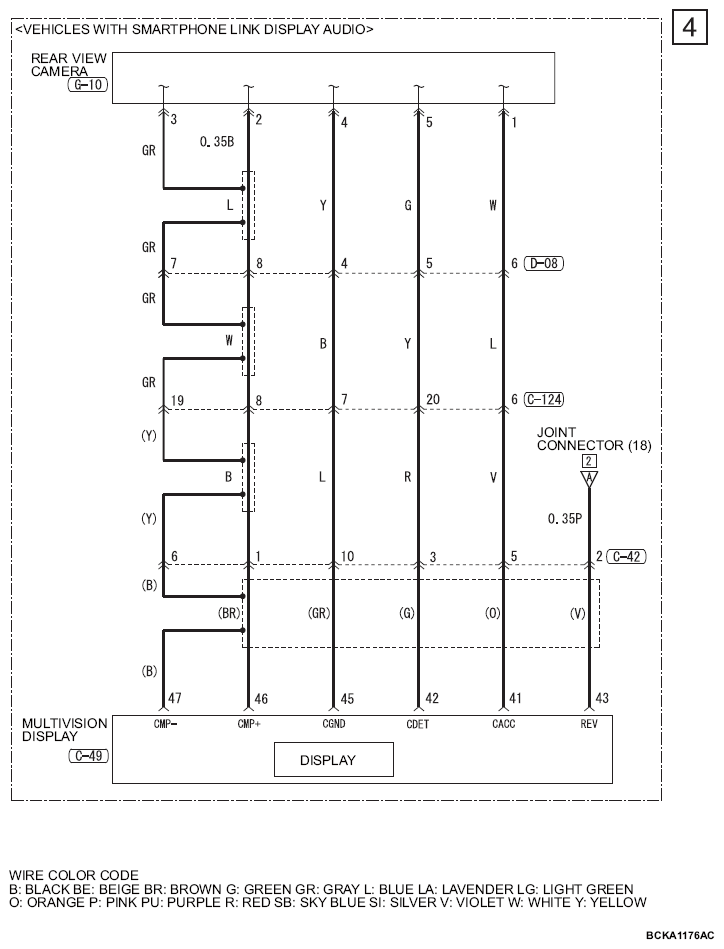

G13752078Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
