Removal And Installation
Post-installation Operation
(Refer to
LEARNING PROCEDURES OF POWER WINDOW FULLY CLOSED POSITION <VEHICLES WITH SAFETY SYSTEM (DRIVER'S SIDE)>DOOR
).

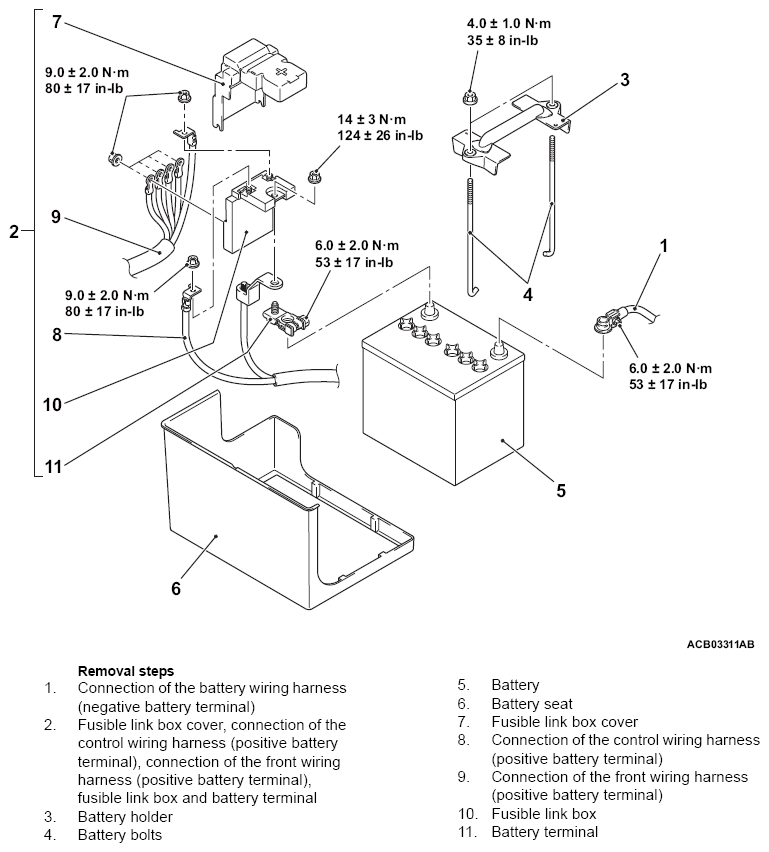

Fig 1: Removing/Installing Battery Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
