Removal And Installation: Notes

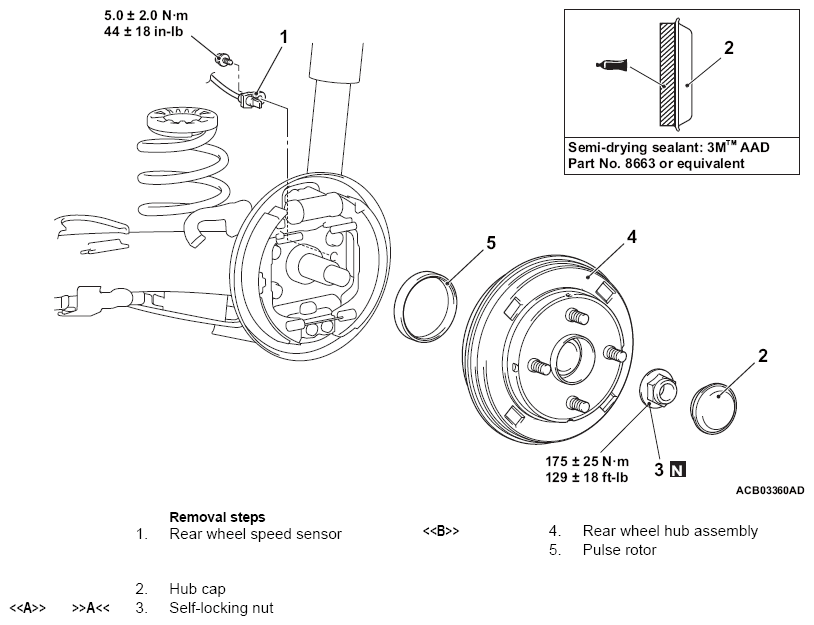

Fig 1: Removing/Installing Rear Axle Hub Assembly Components Location With Torque Specification
G13734762Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
