Disassembly And Reassembly

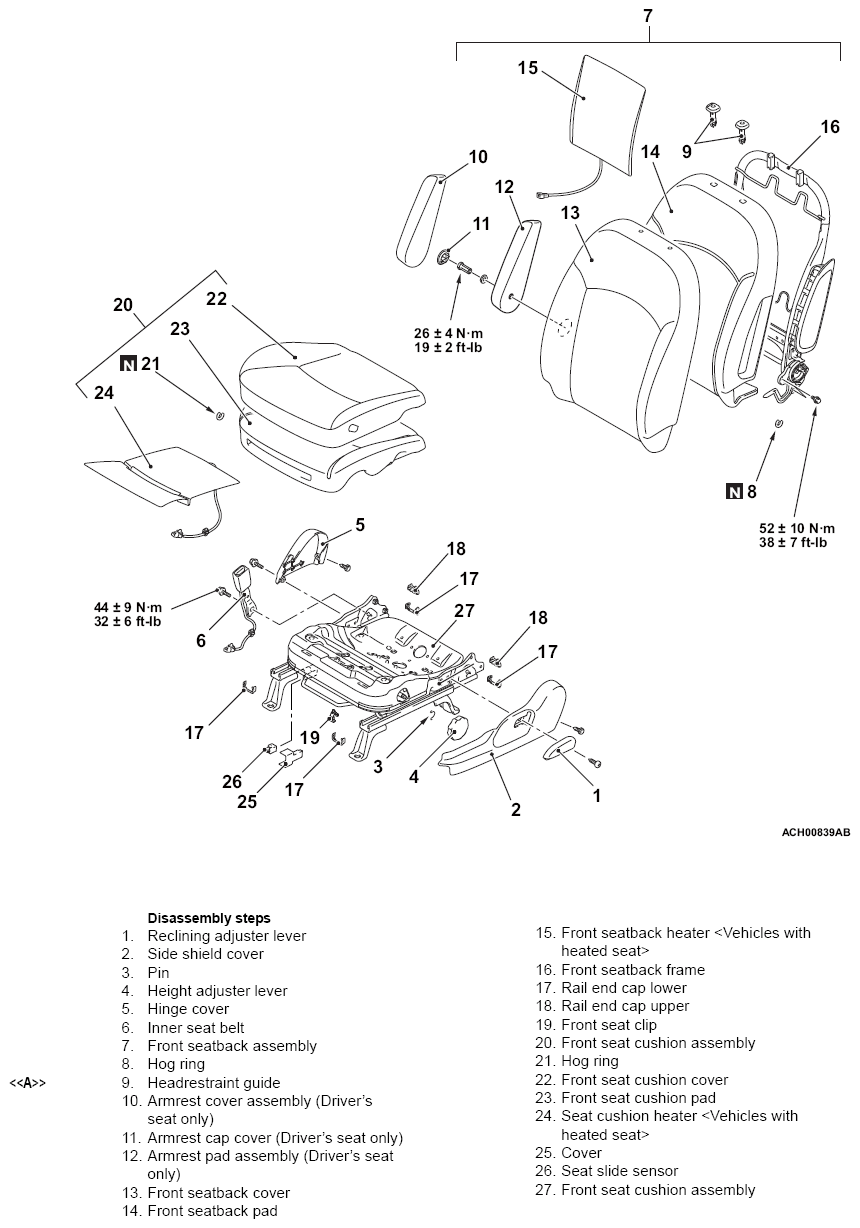

Fig 1: Disassembling/Assembling Front Seat Assembly Components With Torque Specifications

G13735303

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
