Removal And Installation: Notes

Pre-removal and post-installation operation

Air Cleaner Assembly Removal and Installation (Refer to REMOVAL AND INSTALLATION ).
Main Muffler and Heat Protector Panel Dash Upper Removal and Installation (Refer to REMOVAL AND INSTALLATION ).
Heat Protector Removal and Installation (Refer to REMOVAL AND INSTALLATION ).

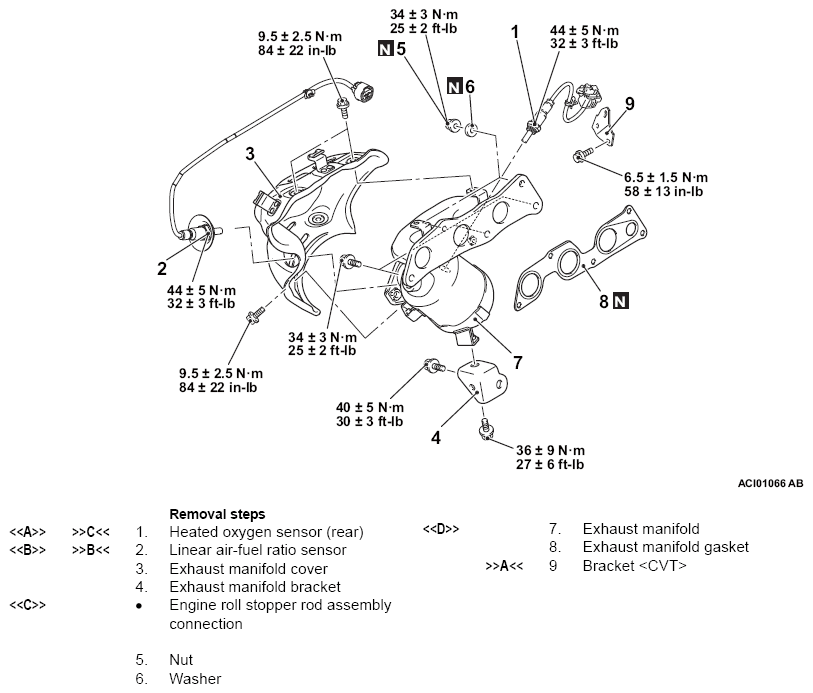

Fig 1: Removing/Installing Exhaust Manifold Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
