Home >> Mitsubishi >> 2021 >> Mirage LE >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust >> Air Cleaner >> Removal And Installation >> Notes

Removal And Installation: Notes

CAUTION:
  • When removing or installing the mass airflow sensor, be careful not to apply impact to the sensor.
  • Do not reuse the mass airflow sensor that has been dropped.

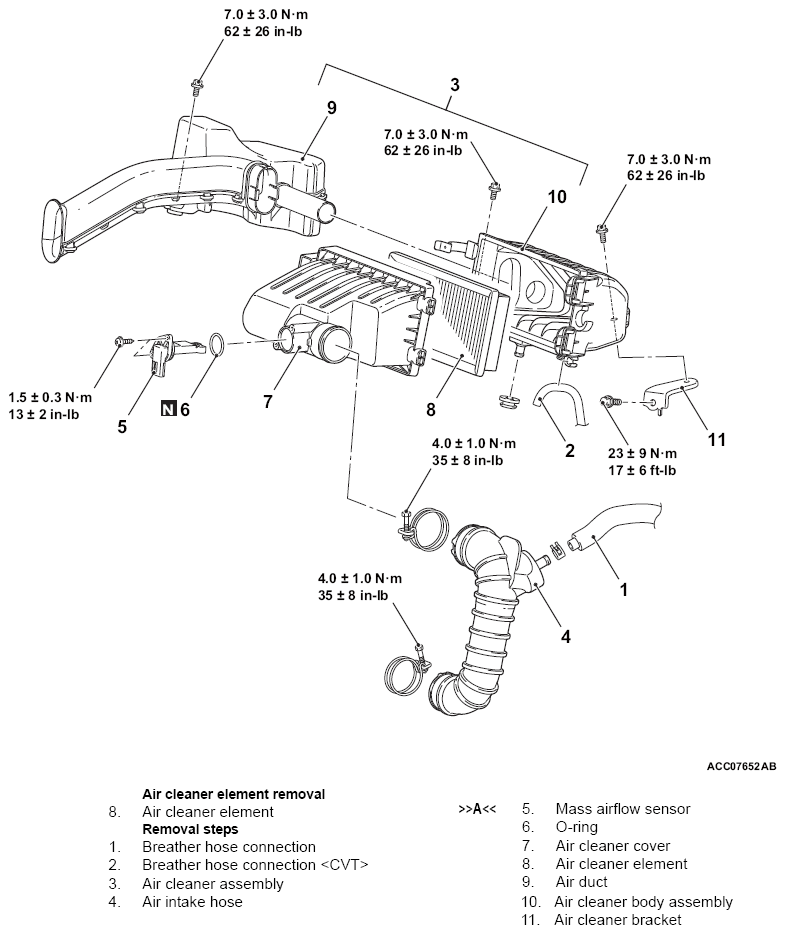

Fig 1: Removing/Installing Air Cleaner Components With Torque Specification
G13734239Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
