Notes
Removal And Installation: Notes
Pre-removal Operation
Engine Coolant Draining (Refer to
ENGINE COOLANT REPLACEMENT
).
Front End Upper Bar Removal (Refer to
LOOSE PANEL REMOVAL AND INSTALLATION
).
Post-installation Operation
Front End Upper Bar Installation (Refer to
LOOSE PANEL REMOVAL AND INSTALLATION
).
Engine Coolant Refilling (Refer to
ENGINE COOLANT REPLACEMENT
).

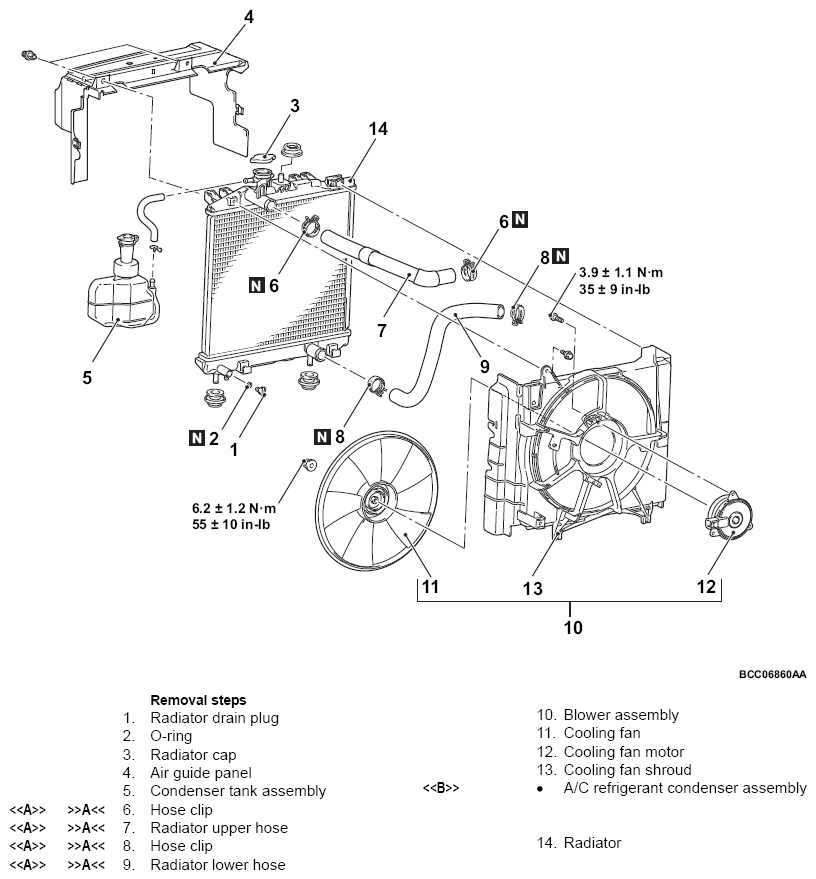

Fig 1: Removing/Installing Radiator Components With Torque Specifications (M/T)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
