Horn Relay Check

Battery voltage Terminal number Normal condition
At no energization 3 - 4 Open loop
With current supply [terminal 1 (+), terminal 2 (-)] Less than 2 ohm

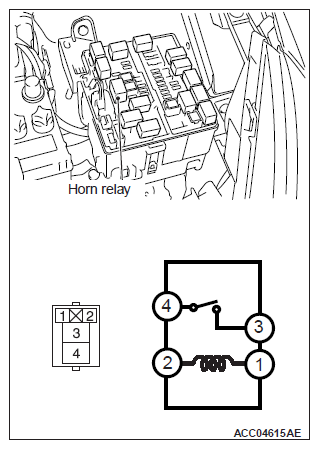

G11281075Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
