Engine And Transaxle

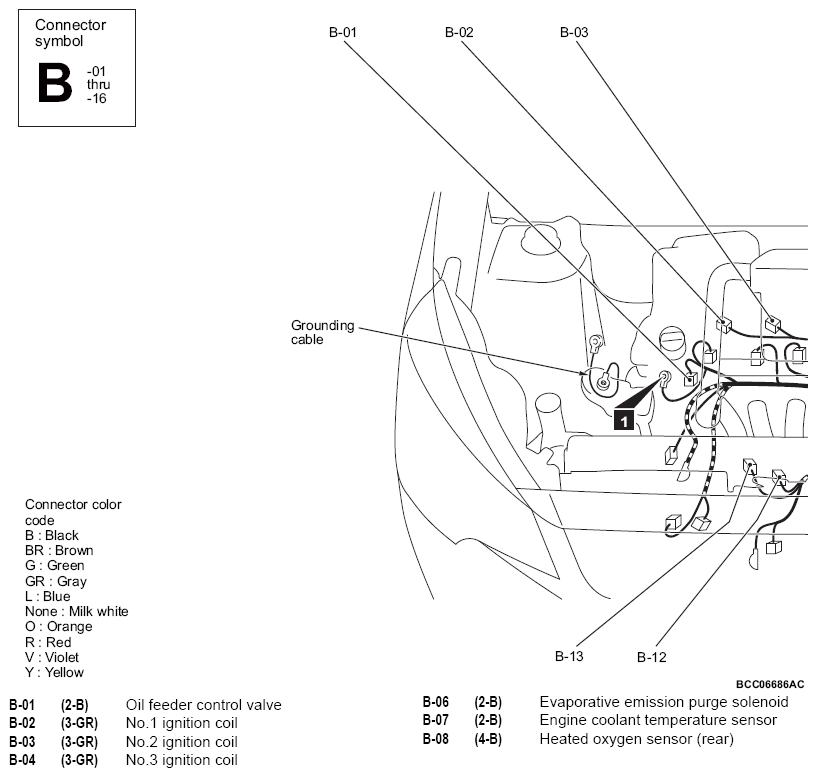

G13751802Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

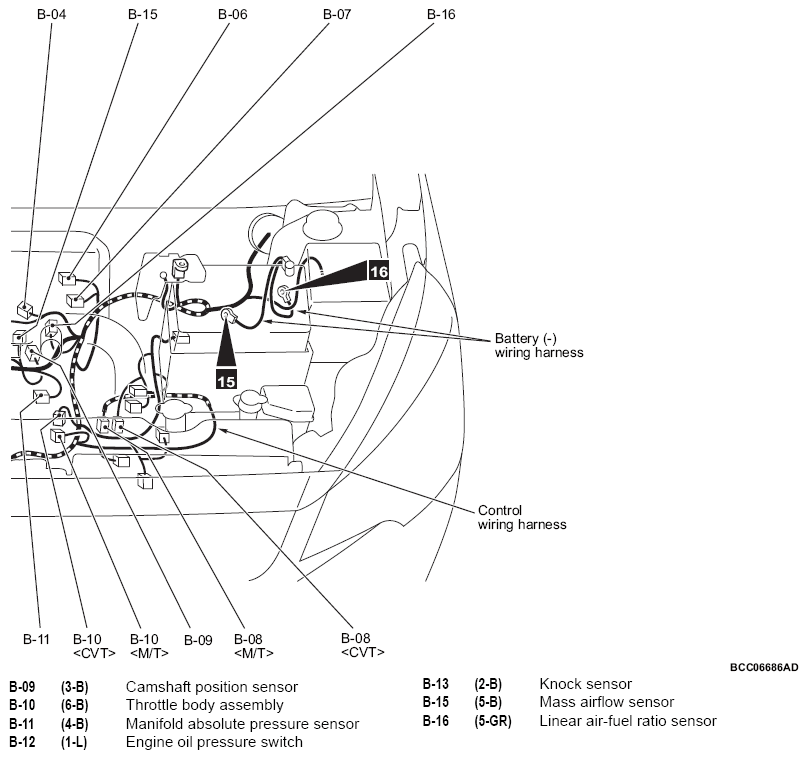

G13751803Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

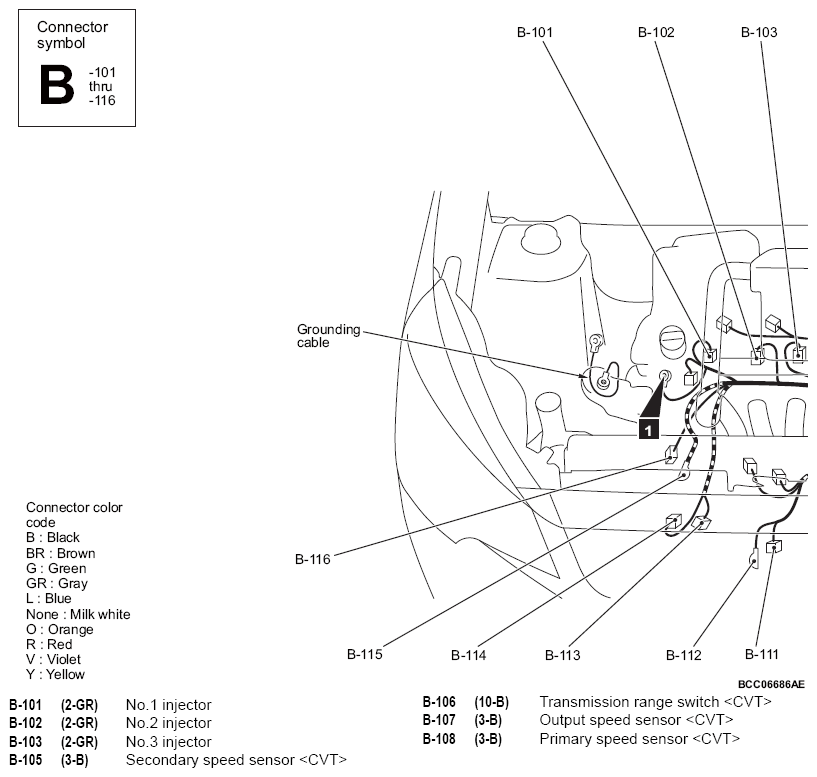

G13751804Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

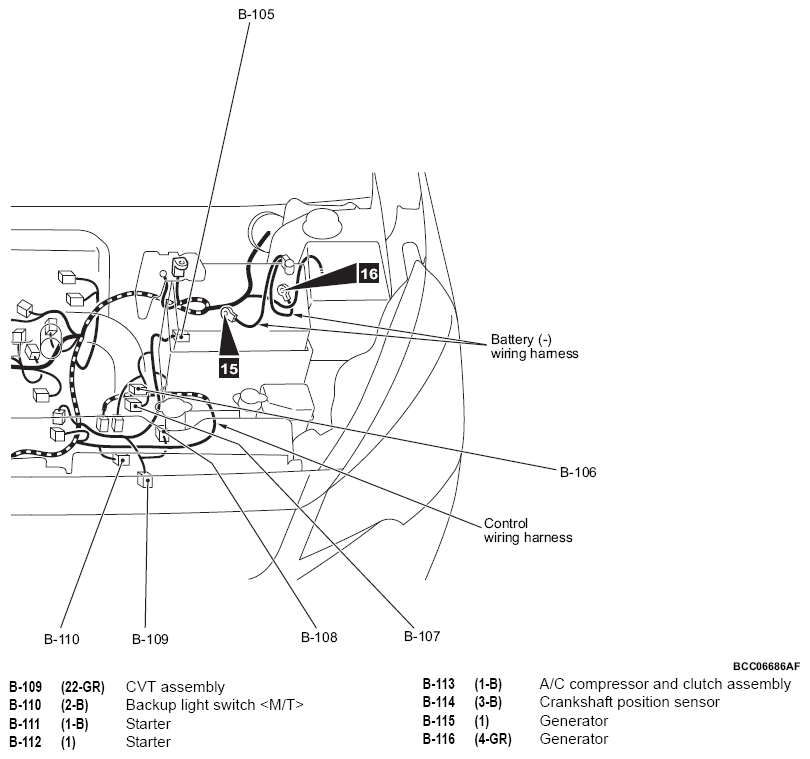

G13751805Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
