Disassembly And Assembly: Notes

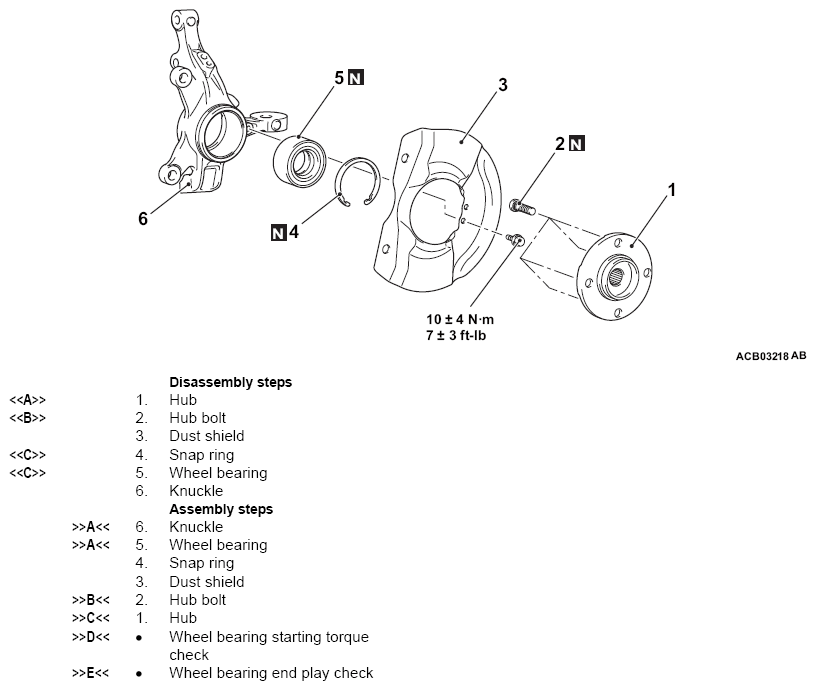

Fig 1: Disassembling/Assembling Front Axle Hub Assembly Components Location With Torque Specification
Required Special Tools:
- MB991017: Front Hub Remover and Installer
- MB991355: Knuckle Arm Bridge
- MB992250: Knuckle Arm Bridge attachment
- MB992867: Front Hub Remover and Installer Spacer
- MB991618: Hub Bolt Remover
- MB991019: Spacer
- MD998801: Remover
- MB992254: Base
- MD999547: Oil Seal Installer
- MB990799: Ball Joint A Remover and Installer
- MD998812: Installer Cap
- MD998813: Installer 100
- MD998815: Installer Adapter
- MB990767: Front Hub and Flange Yoke Holder
- MB990800: Ball Joint B Remover and Installer
- MB991199: Oil Seal Installer
- MB991000: Spacer
- MB990326: Preload Socket
- MB990685: Torque Wrench
