Removal And Installation: Notes
Pre-removal operation
Removal of Steering wheel assembly (Refer to
REMOVAL AND INSTALLATION
.)
Removal of Steering column lower cover and steering column upper cover (Refer to
REMOVAL AND INSTALLATION
.)
Removal of Column switch body (Refer to
REMOVAL AND INSTALLATION
)
Removal of Instrument panel cover lower (Refer to
REMOVAL AND INSTALLATION
.)
Post-installation operation
Installation of Instrument panel cover lower (Refer to
REMOVAL AND INSTALLATION
.)
Removal of Column switch body (Refer to
REMOVAL AND INSTALLATION
.)
Installation of Steering column lower cover and steering column upper cover (Refer to
REMOVAL AND INSTALLATION
.)
Removal of Steering wheel assembly (Refer to
REMOVAL AND INSTALLATION
.)

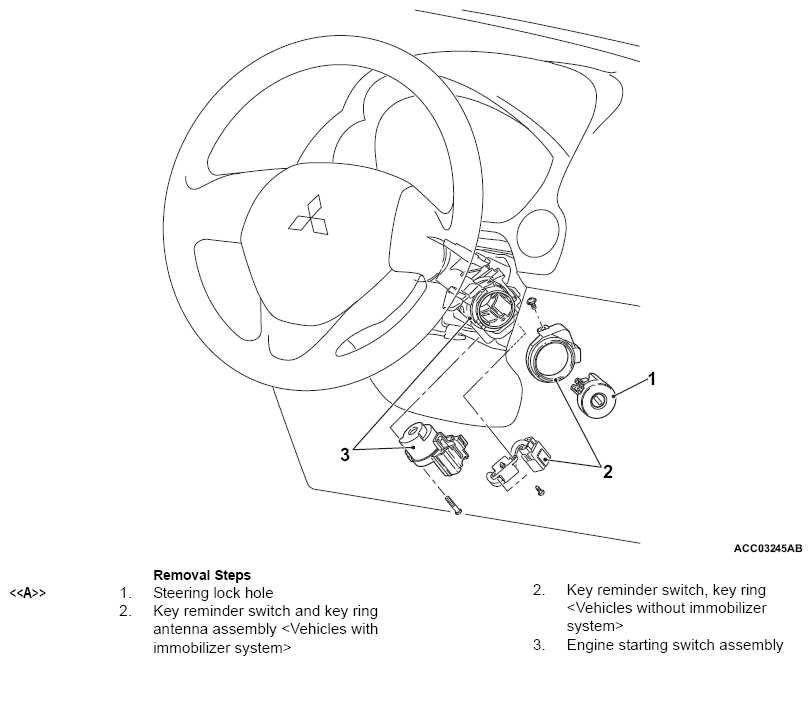

Fig 1: Ignition Switch Removal Sequence
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
