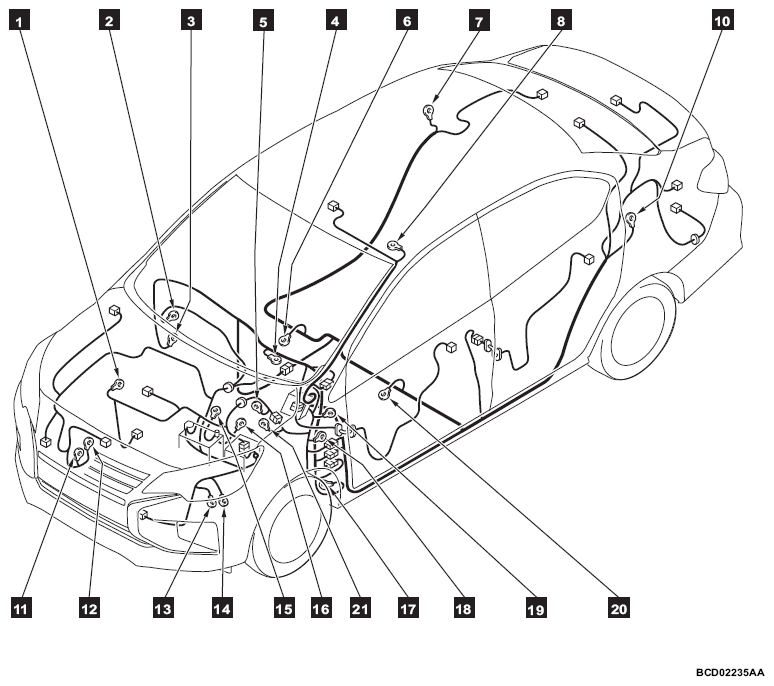

Electrical Component Locations: Grounding
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
Same ground numbers are used in the circuit diagram.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
