Home >> Mitsubishi >> 2021 >> Mirage G4 SE >> Repair and Diagnosis >> Electrical >> Charging Systems >> Generator Assembly >> Removal And Installation

Removal And Installation

Pre-removal Operation
 Post-installation Operation

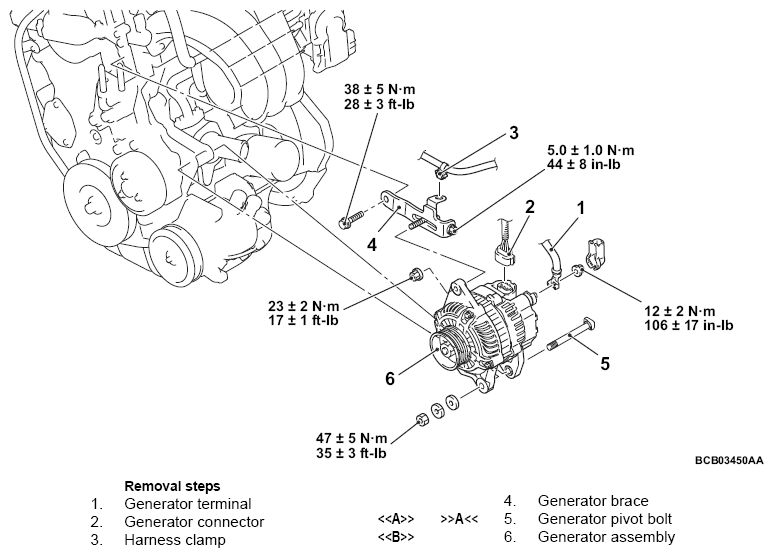

Fig 1: Removing/Installing Generator Assembly Components With Torque Specifications
G13779002Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
