Engine Compartment

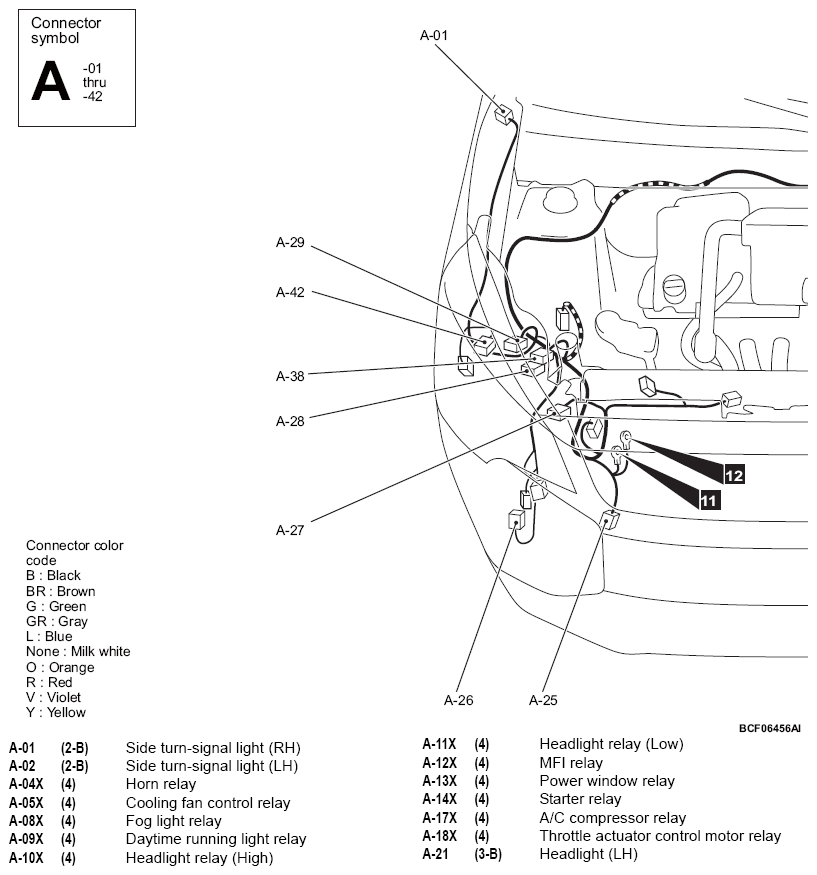

G13781384Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

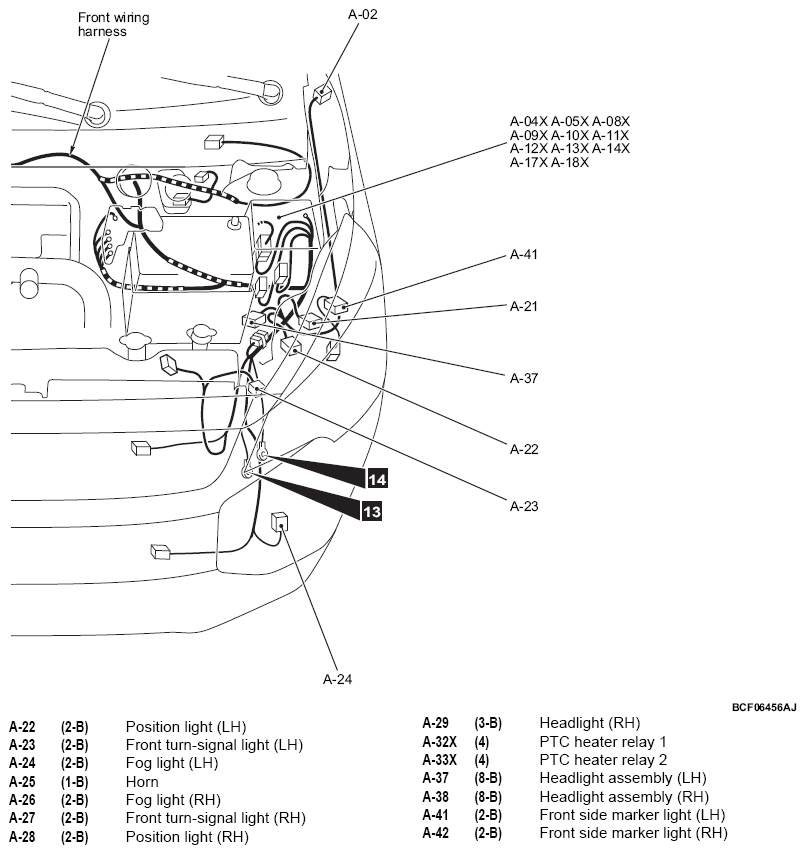

G13781385Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

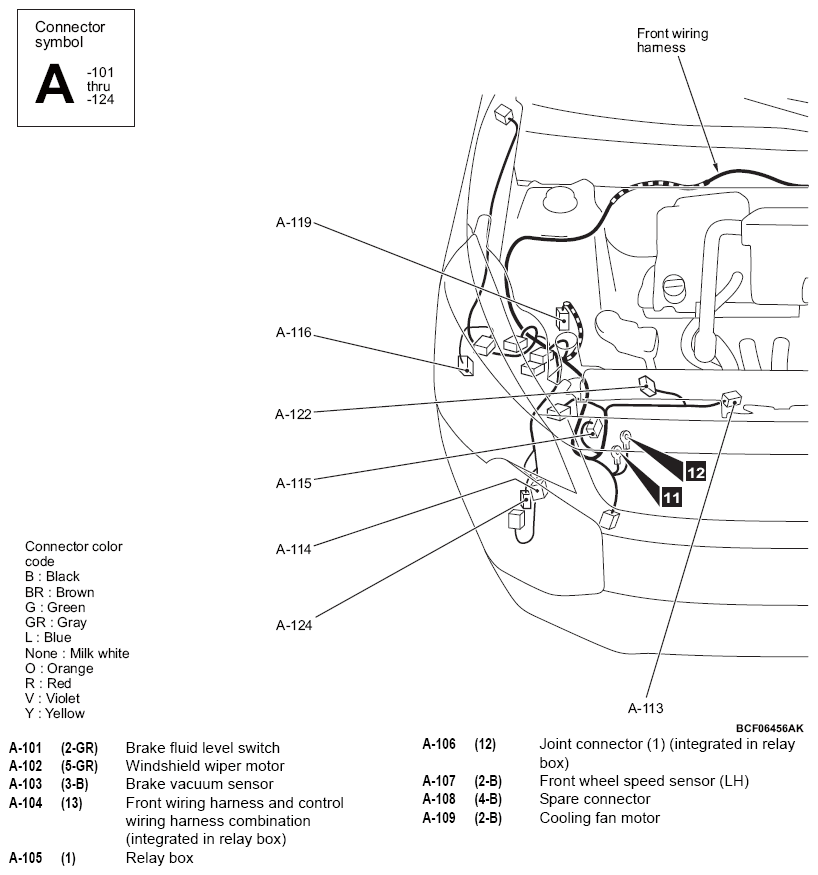

G13781386Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

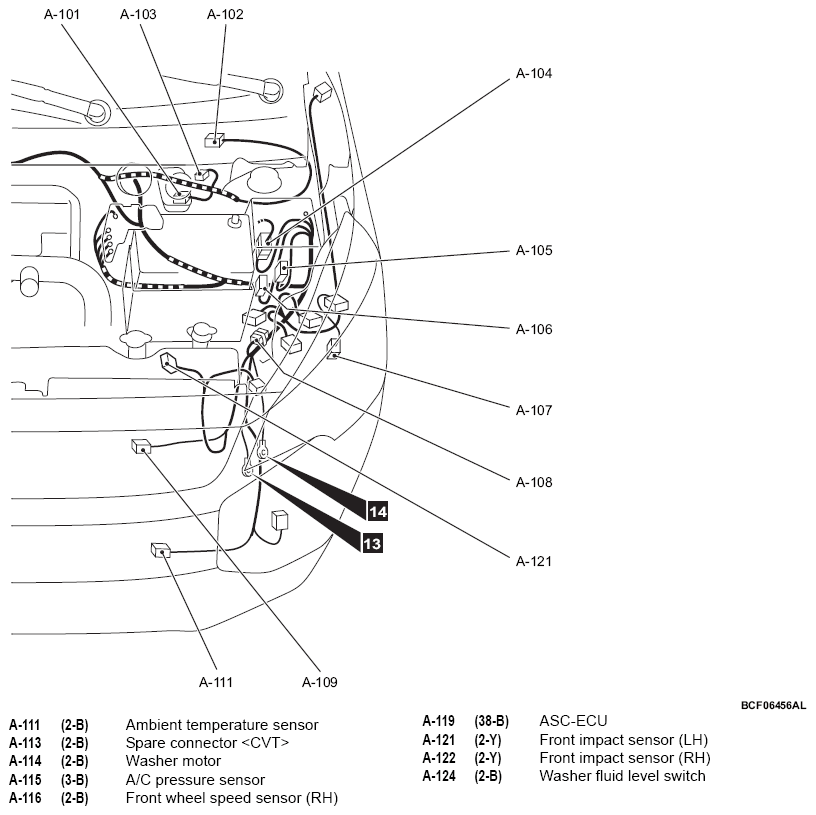

G13781387Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
