Notes
Removal And Installation: Notes
WARNING:
Be careful not to subject the SRS-ECU to any shocks during removal and installation of the gearshift cable and select cable assembly.

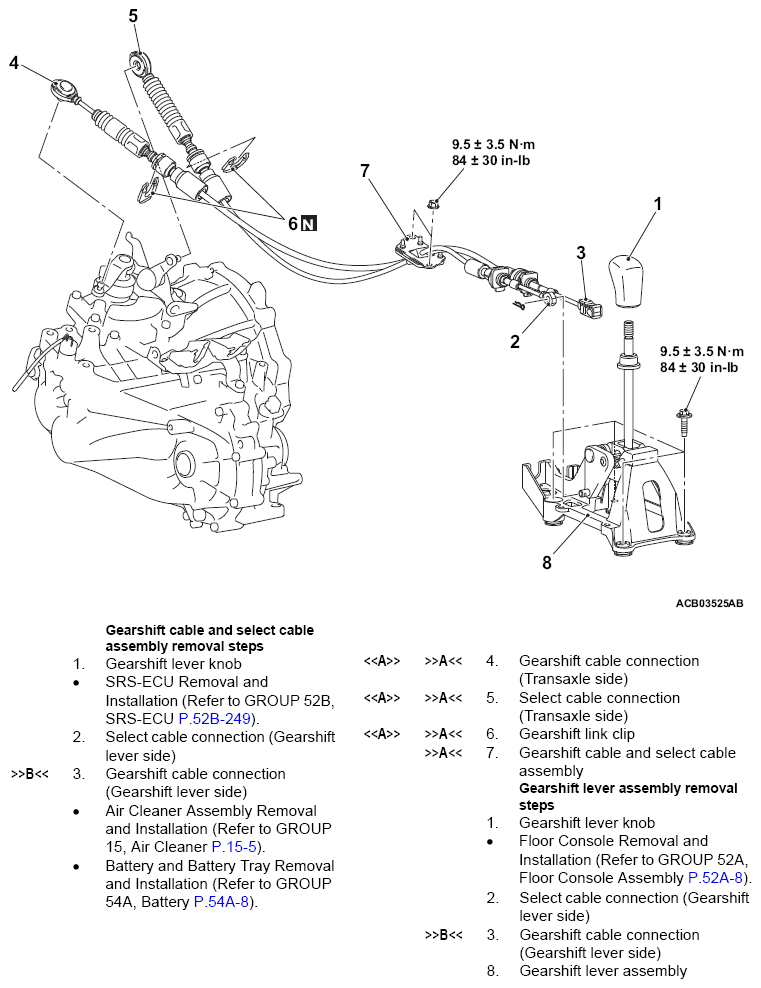

Fig 1: Removing/Installing Transaxle Control Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
