Removal And Installation: Notes

Pre-removal operation

Post-installation operation

Clutch Pedal Check And Adjustment (Refer to CLUTCH PEDAL CHECK AND ADJUSTMENT ).
Battery and Battery Tray Installation (Refer to REMOVAL AND INSTALLATION ).
Air Cleaner Assembly Installation (Refer to REMOVAL AND INSTALLATION ).
Drive Shaft Installation (Refer to REMOVAL AND INSTALLATION .)
Starter Motor Assembly Installation (Refer to REMOVAL AND INSTALLATION ).
Transmission Oil Refilling (Refer to TRANSMISSION OIL REPLACEMENT ).
Under Cover Front Installation (Refer to REMOVAL AND INSTALLATION ).

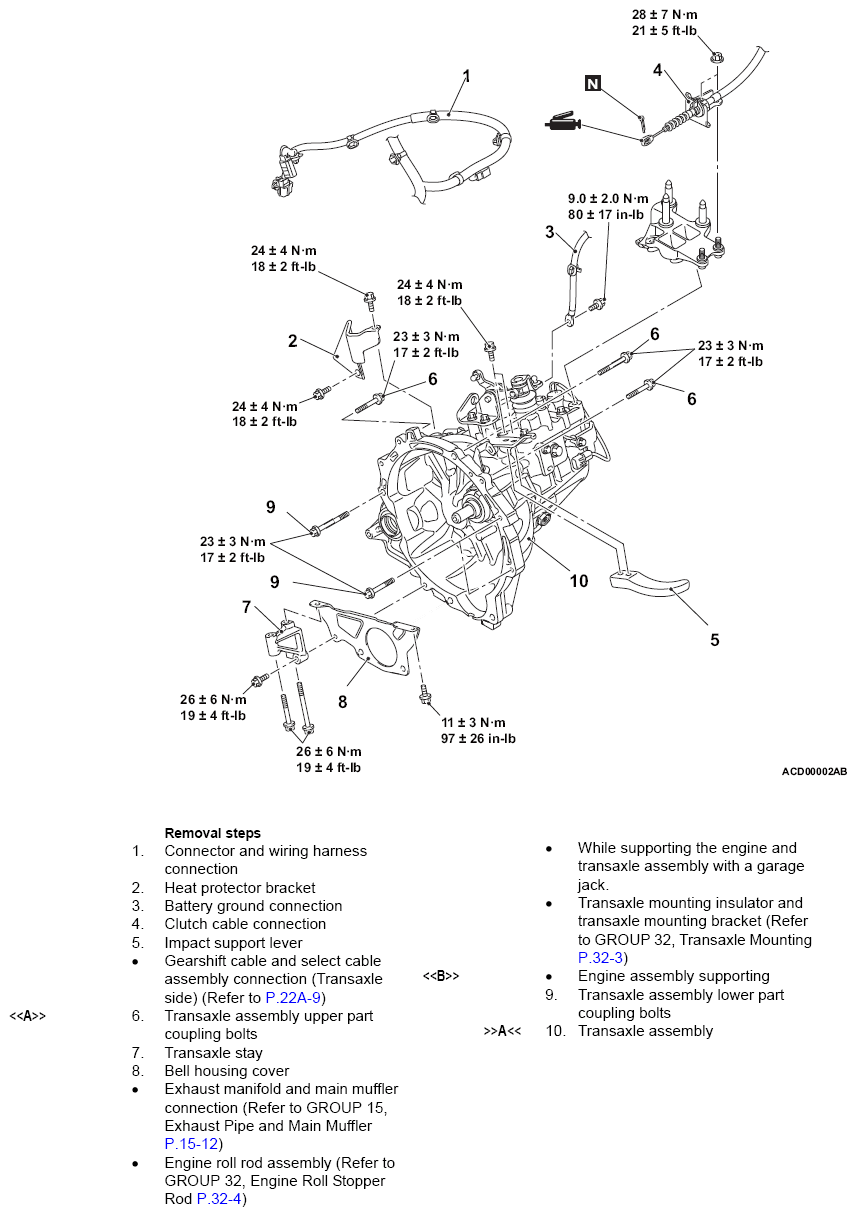

Fig 1: Removing/Installing Transaxle Assembly Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991928: Engine Hanger
- Slide Bracket (HI)
- MB991932: Foot (standard)
- MB991929: Joint (50)
MB991895: Engine Hanger
MB992906: Engine Hanger Attachment
