Home >> Mitsubishi >> 2021 >> Mirage G4 ES, Standard Trans >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Seat Assembly >> Front Seat Assembly >> Disassembly And Reassembly >> Notes

Disassembly And Reassembly: Notes

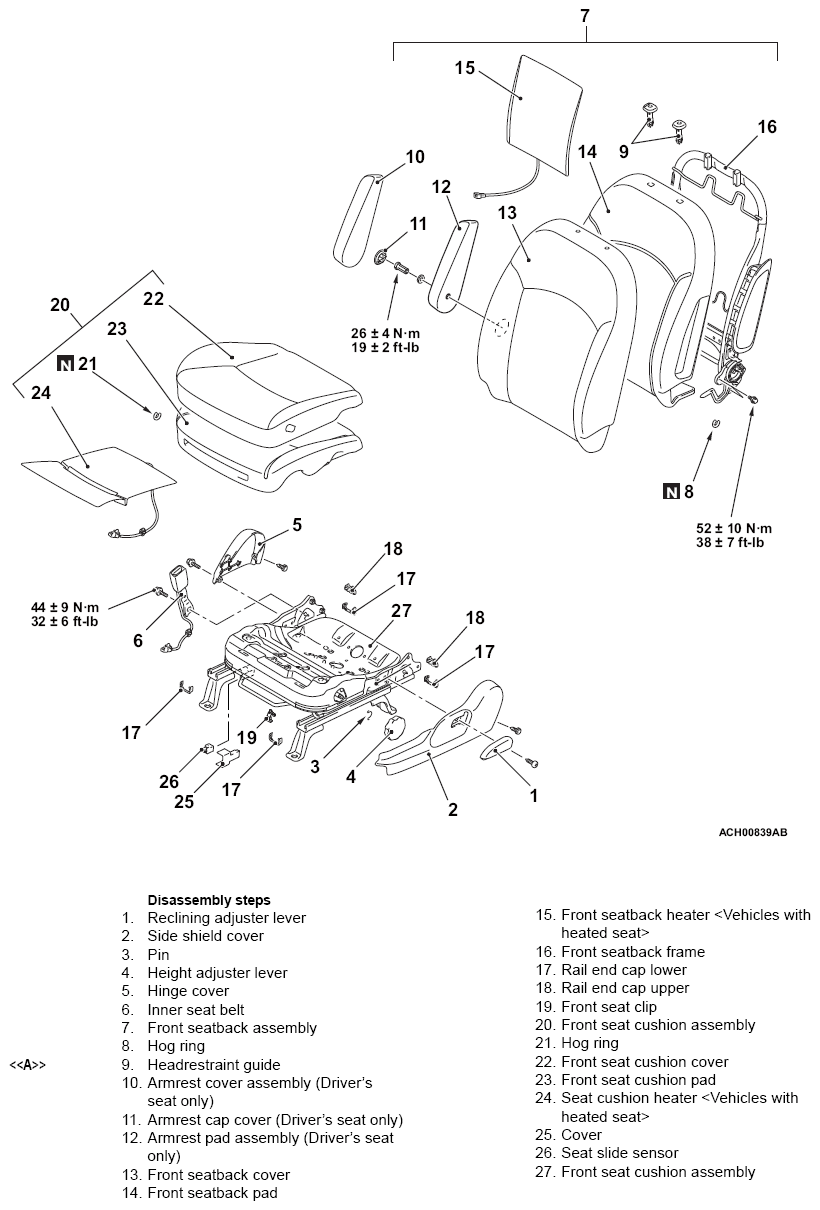

Fig 1: Disassembling/Assembling Front Seat Assembly Components With Torque Specifications

G13780017

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
