Home >> Mitsubishi >> 2021 >> Mirage G4 ES, Standard Trans >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Supply >> Fuel Filler Neck >> Removal And Installation >> Notes

Removal And Installation: Notes

Post-installation Operation

Checking for Fuel Leaks.

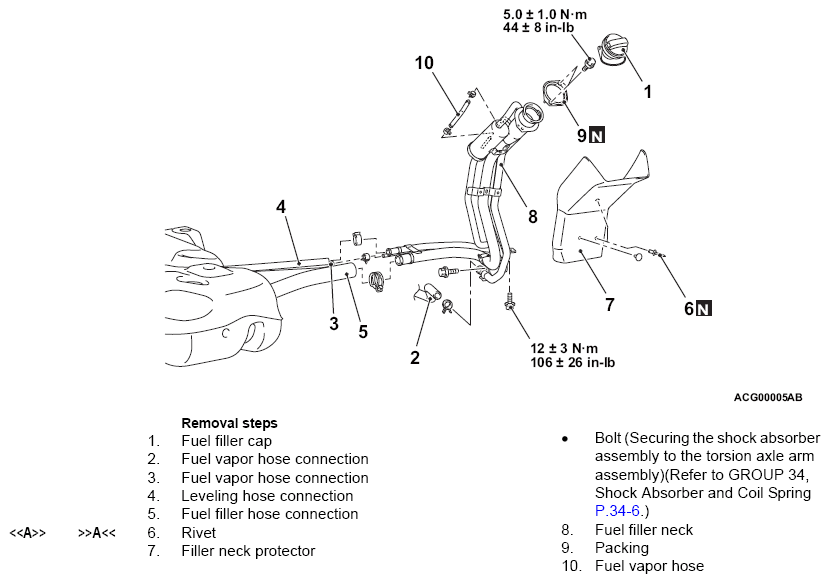

Fig 1: Removing/Installing Fuel Filler Neck Components With Torque Specifications
G13778943Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
