Transmission Oil Replacement

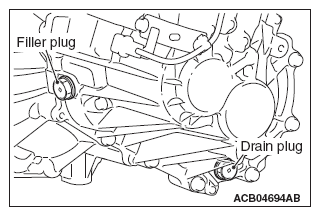

1. Remove the filler plug and gasket.
2. Remove the drain plug and gasket, and drain the transmission oil.
3. Tighten the drain plug and new gasket, to the specified torque.

   Tightening torque: 48 ± 20 N.m (35± 14 ft-lb)

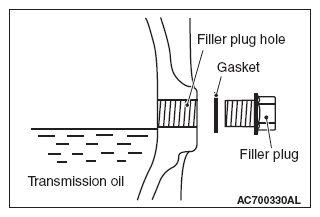

4. Fill in the new transmission oil until the level comes to the lower portion of filler plug hole.

   Transmission oil: MITSUBISHI MOTORS GENUINE NEW MULTI GEAR OIL ECO API GL-4/SAE 75W-80

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   Quantity: 1.6 dm ³  (1.69 quarts)

5. Tighten the filler plug and new gasket to the specified torque.

Tightening torque: 40 ± 11 N.m (30 ± 8 ft-lb)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
