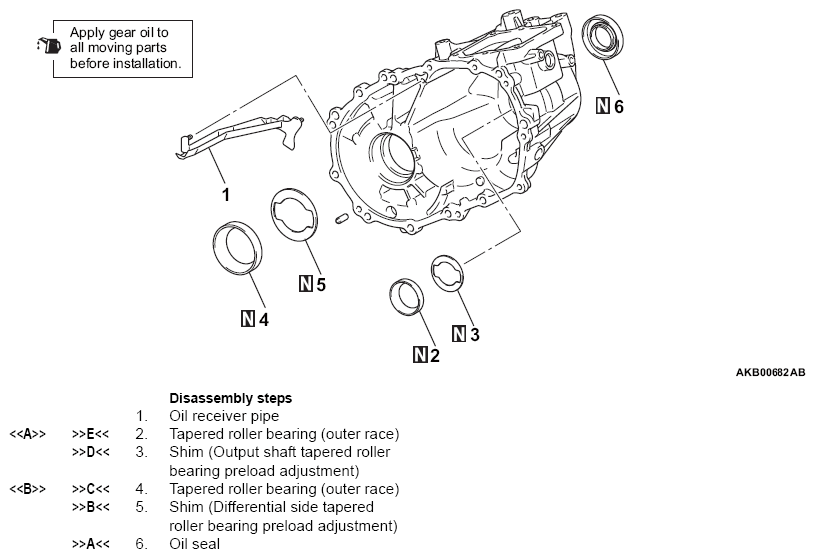

Disassembly And Assembly: Notes

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD999552: Valve Body & Pump Housing Remover
• MB990801: Rear Axle Bearing Outer Race Puller
• MB990938: Handle
• MB990932: Installer Adapter
• MB991144: Side Gear Holding Tool
• MB992873: Installer Oil Seal
• MB992075: Handle
• MB990642: Base
• MB990931: Installer Adapter
