Disassembly And Assembly: Notes

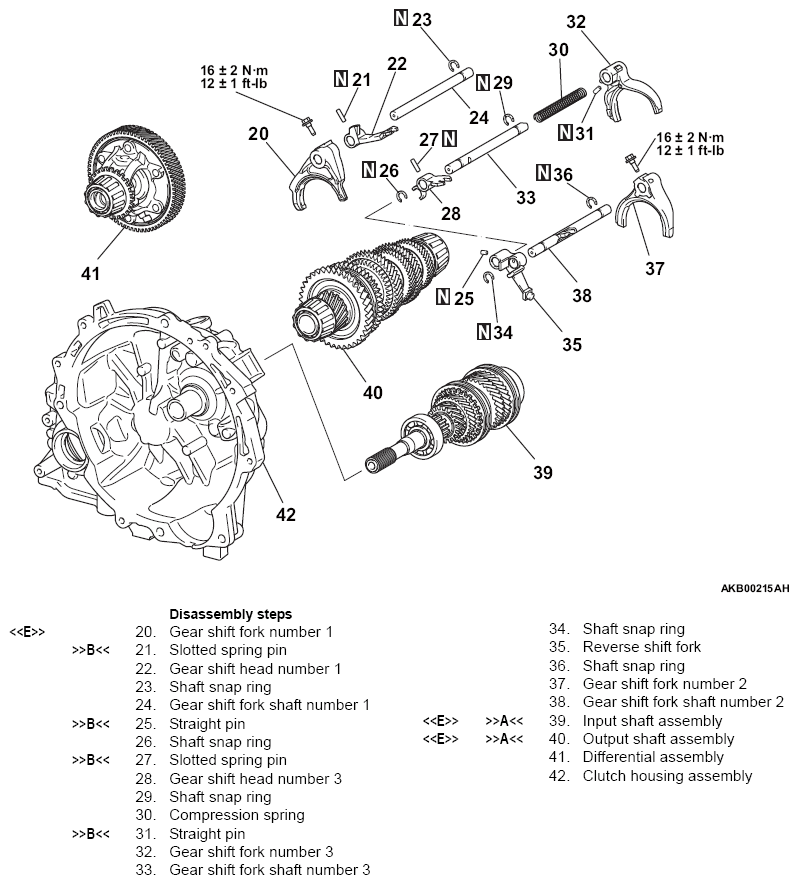

Fig 1: Disassembling/Assembling Transaxle Components With Torque Specifications (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

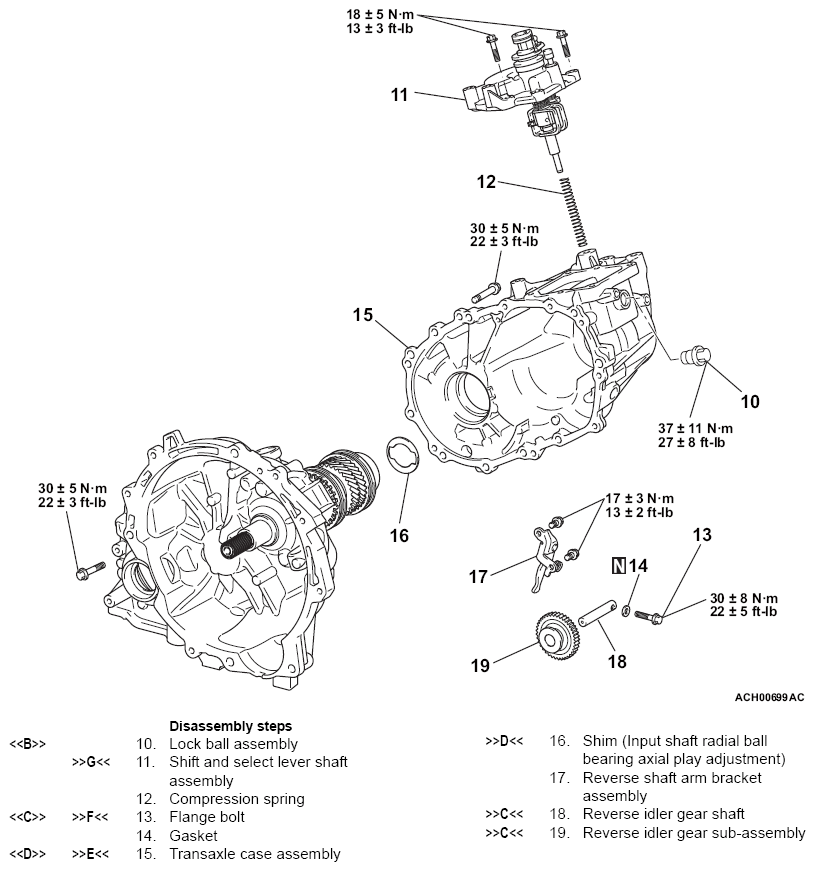

Fig 2: Disassembling/Assembling Transaxle Components With Torque Specifications (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

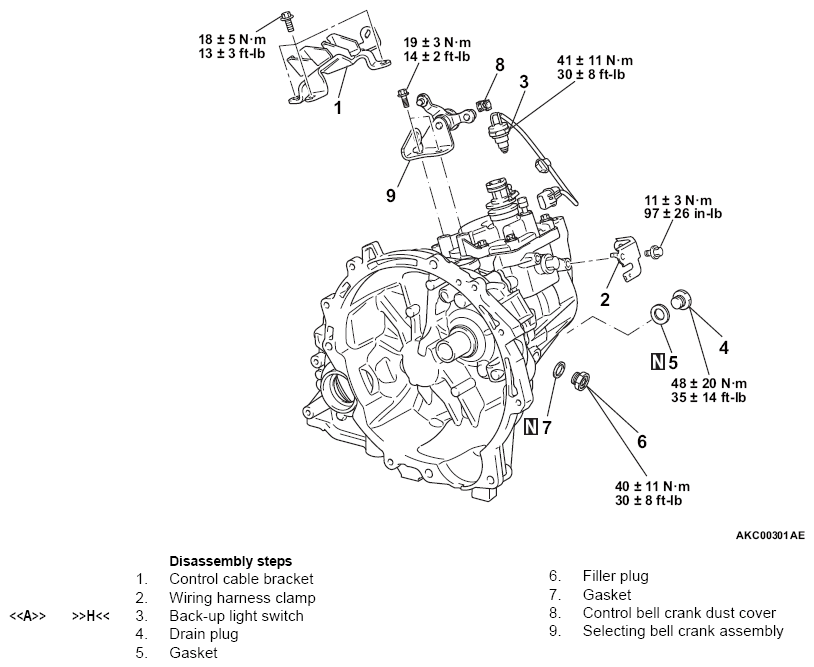

Fig 3: Disassembling/Assembling Transaxle Components With Torque Specifications (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998773: Knock Sensor Wrench
• MD998245: Installer Lock Pin
