Home >> Mitsubishi >> 2021 >> Mirage ES, Standard Trans >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle Overhaul >> Control Housing >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

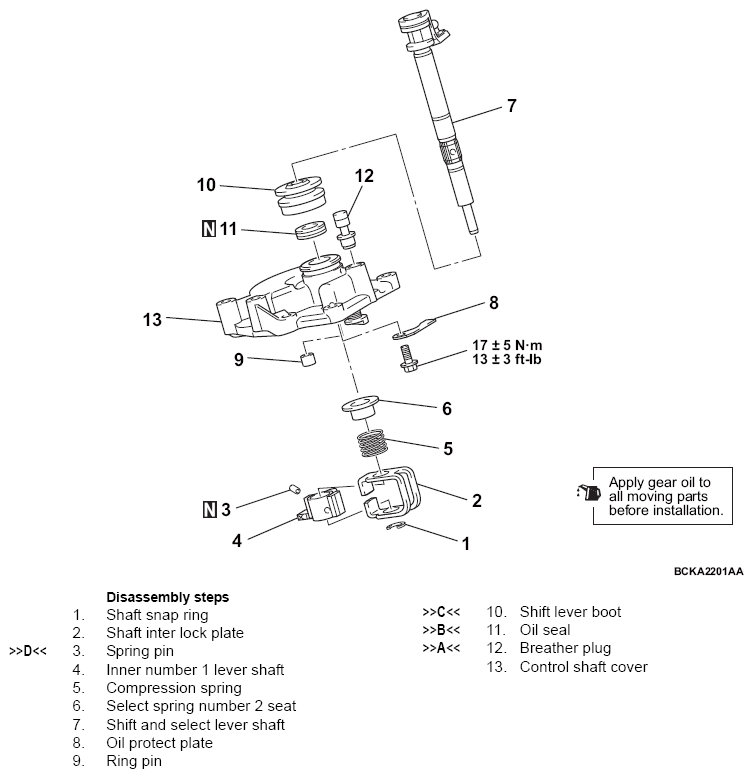

Fig 1: Disassembling/Assembling Control Housing Components With Torque Specifications
G13734449Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
