Disassembly And Reassembly

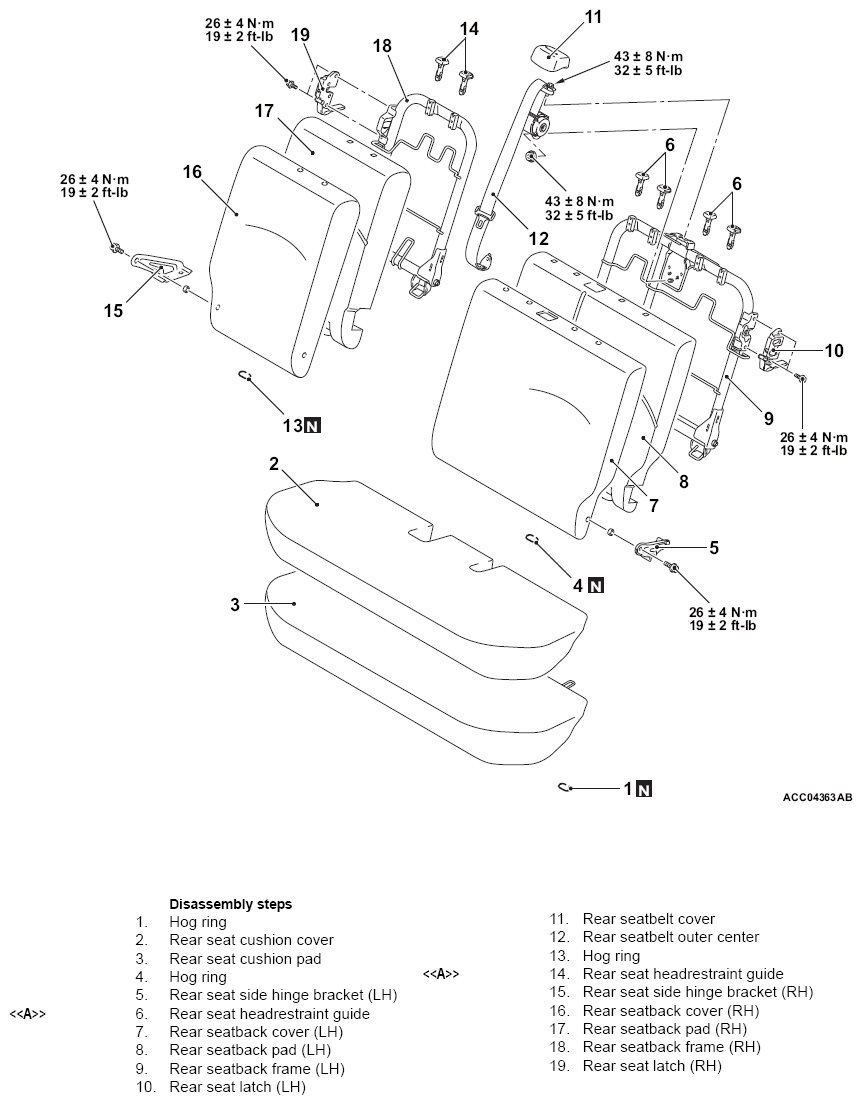

Fig 1: Disassembling/Assembling Rear Seat Assembly Components With Torque Specifications

G13735311

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
