Removal And Installation

CAUTION:
  • When removing or installing the camshaft position sensor, be careful not to apply impact to the sensor.
  • Do not reuse the camshaft position sensor that has been dropped.
Pre-removal Operation Post-installation Operation

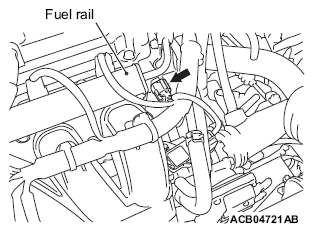

G13734284Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For the removal and installation procedures, refer to REMOVAL AND INSTALLATION .
