Notes
Removal And Installation: Notes
Pre-removal Operation
Engine Coolant Draining (Refer to
ENGINE COOLANT REPLACEMENT
).
Drive Belt Removal (Refer to
DRIVE BELT REMOVAL
).
Post installation Operation
Drive Belt Installation (Refer to
DRIVE BELT INSTALLATION
).
Engine Coolant Refilling (Refer to
ENGINE COOLANT REPLACEMENT
).

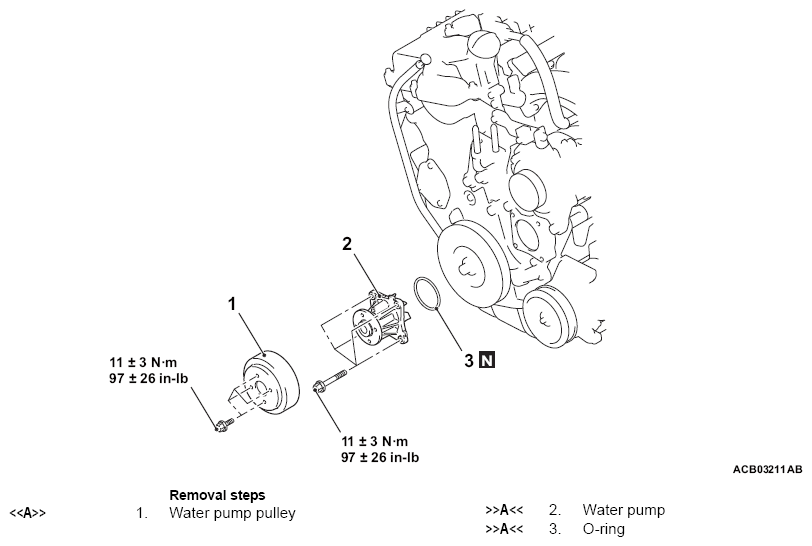

Fig 1: Removing/Installing Water Pump Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
