Cooling Fan Control Relay Continuity Check

BATTERY VOLTAGE TERMINAL NUMBER TO BE CONNECTED TO TESTER CONTINUITY TEST RESULTS
Not applied 4 - 3 Open loop
  • Connect terminal number 1 and positive battery terminal.
  • Connect terminal number 2 and negative battery terminal.
 Should be less than 2 ohm

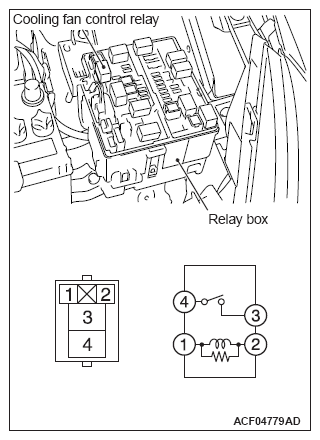

G11277946Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
