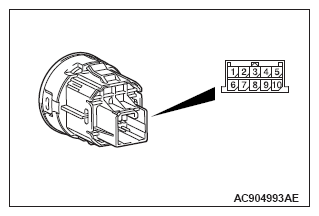

Engine Switch: Inspection

Switch operation Terminal number Normal value
Press 6 - 2 Continuity exists (2 Ω or less)
10 - 4
Release 6 - 2 No continuity
10 - 4
G10224866Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
