Removal And Installation: Notes

Pre-removal and Post-installation Operation
Removal and Installation of Front Pillar Trim, Center Pillar Trim Upper, Quarter Trim Upper (Refer to TRIMS  ).

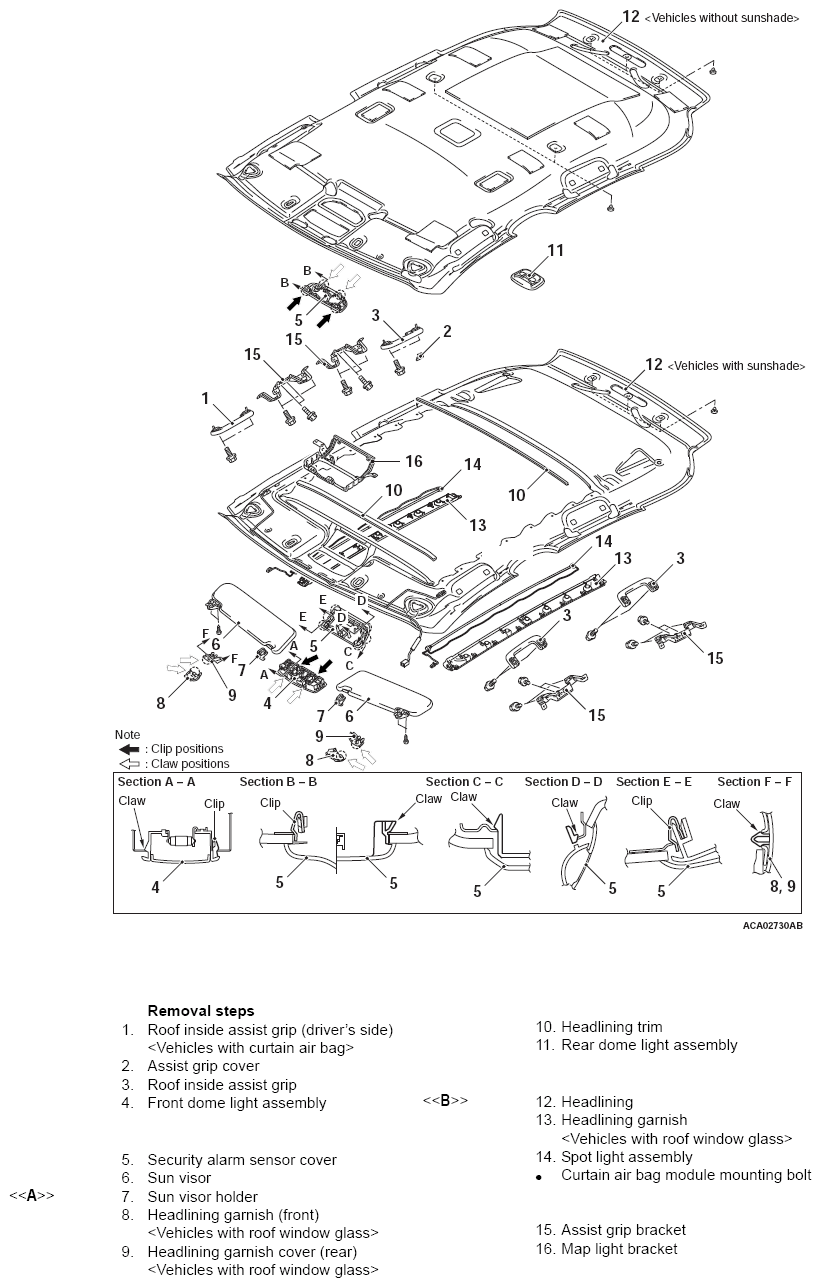

G13346901Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
