Home >> Mitsubishi >> 2020 >> RVR ES, FWD >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Engine Overhaul (2.0L Engine) >> Intake Manifold And Fuel System >> Removal And Installation >> Notes

Removal And Installation: Notes

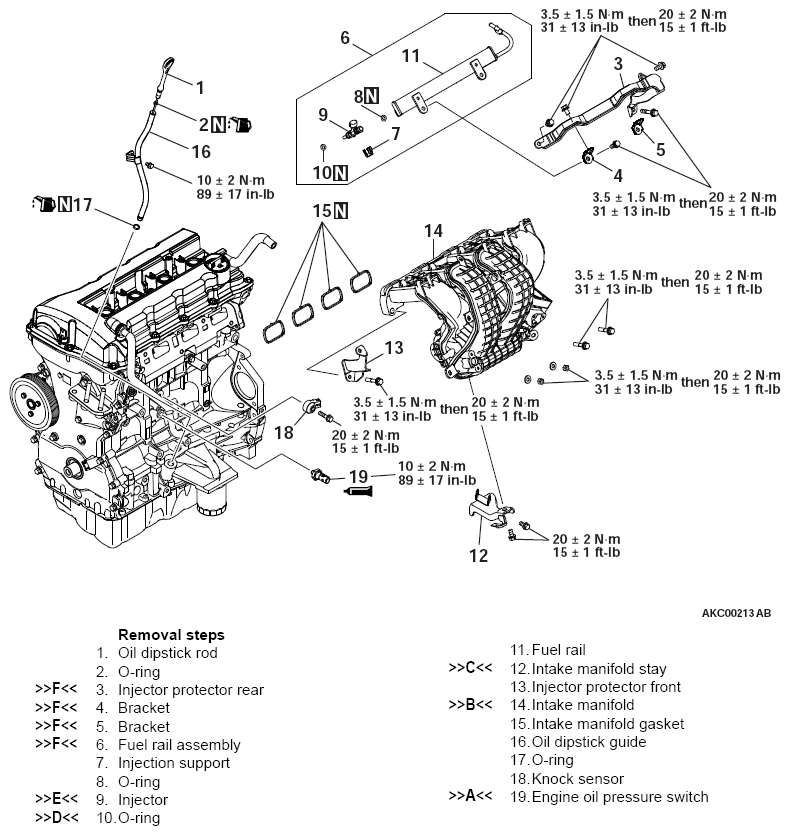

Fig 1: Removing/Installing Intake Manifold And Fuel System Components Location With Torque Specification
G13326526Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
