Home >> Mitsubishi >> 2020 >> RVR ES, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> Configuration Diagrams >> Liftgate

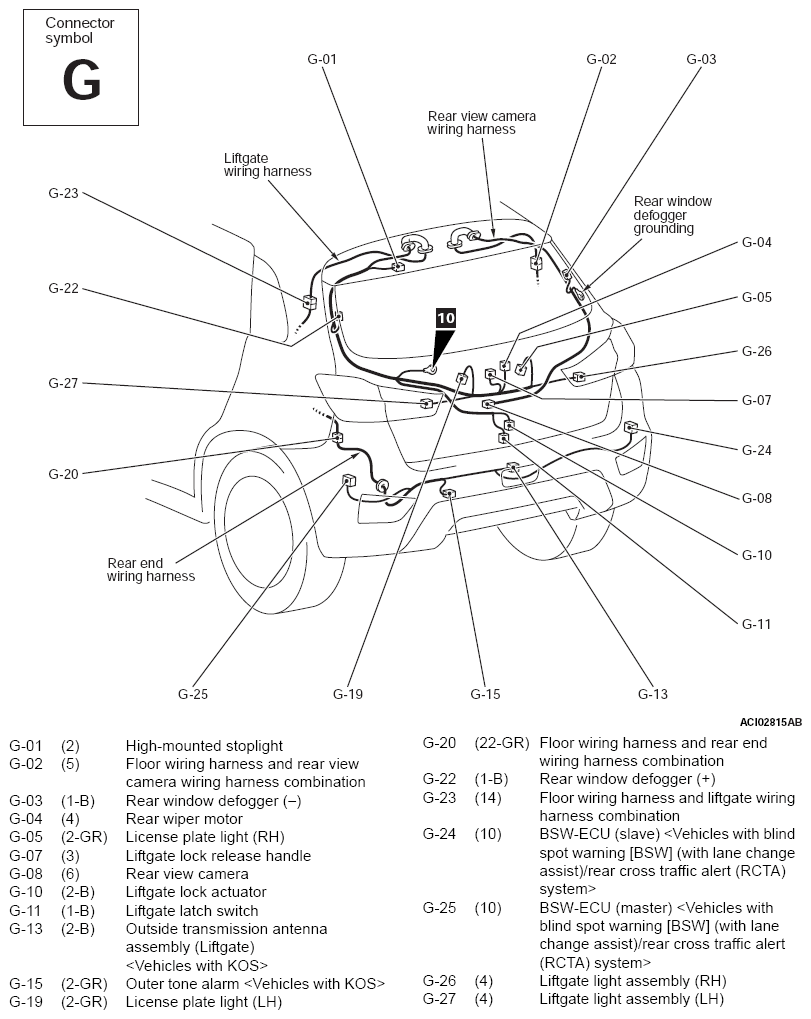

Configuration Diagrams: Liftgate

G13346028

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
