Mitsubishi
>>
2020
>>
RVR ES, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Configuration Diagrams
>>

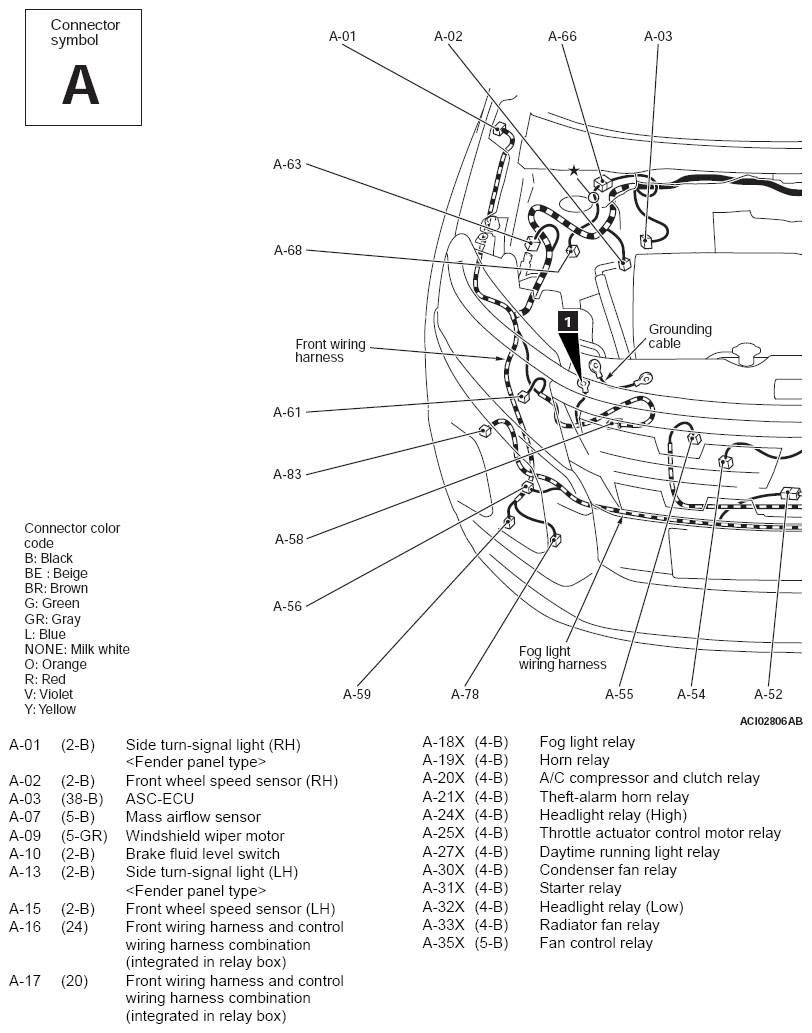

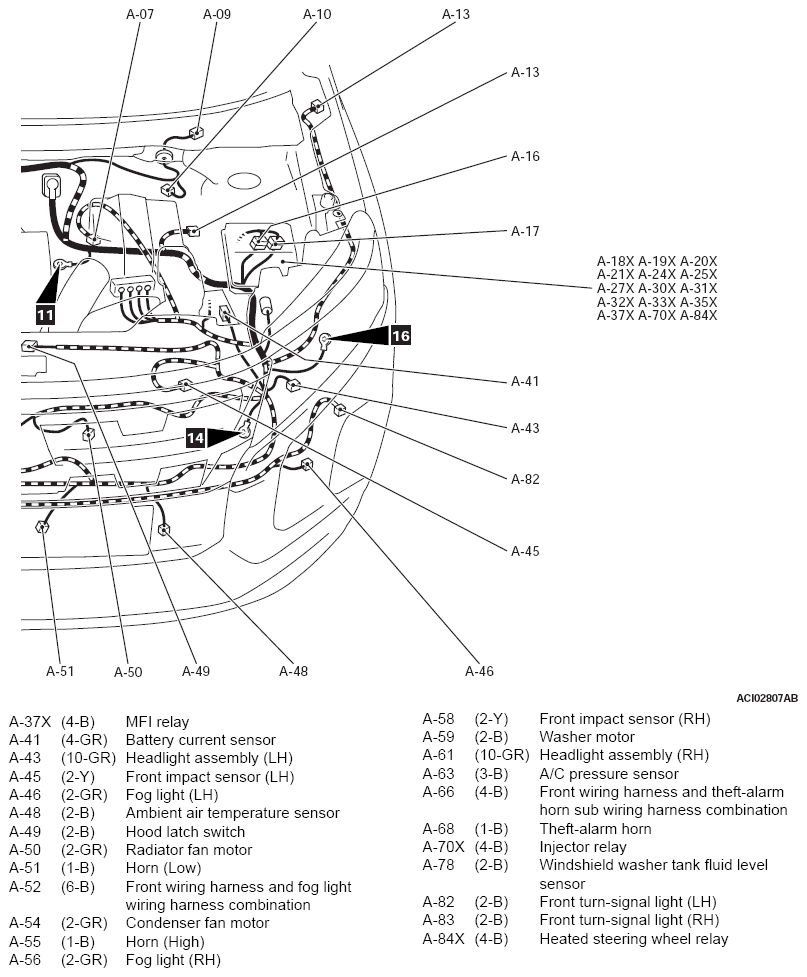

Engine Compartment
Engine Compartment
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
