Removal And Installation: Notes

Post-installation Operation
  • Check the Dust Cover for Cracks or Damage by Pushing it with your finger.
  • Front Wheel Alignment Check and Adjustment (Refer to ON-VEHICLE SERVICE  ).

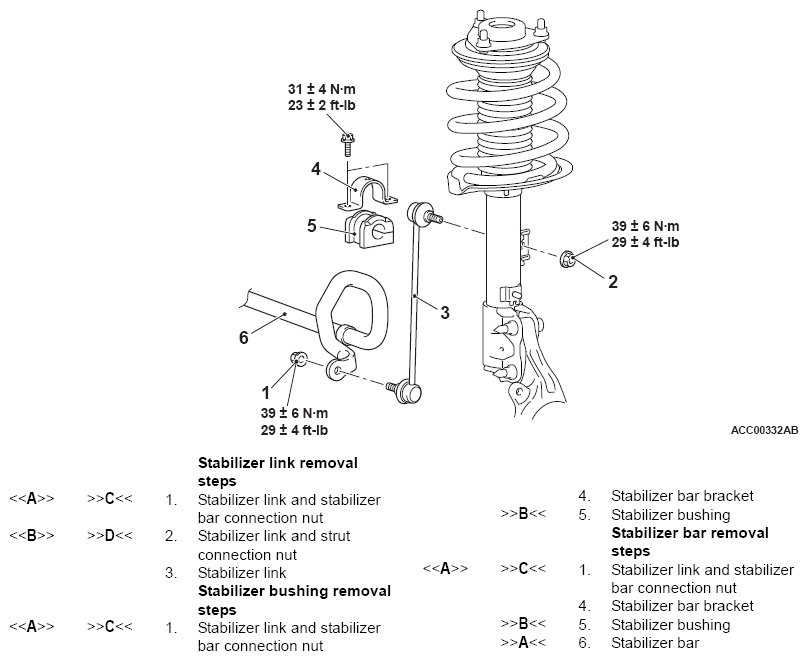

Fig 1: Removing/Installing Stabilizer Bar Components Location With Torque Specification
G13497955Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
