Home >> Mitsubishi >> 2020 >> Outlander SP, AWD >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Seat Assembly >> Removal And Installation >> Overview

Removal And Installation: Overview

Refer to FLOOR CONSOLE ASSEMBLY  .

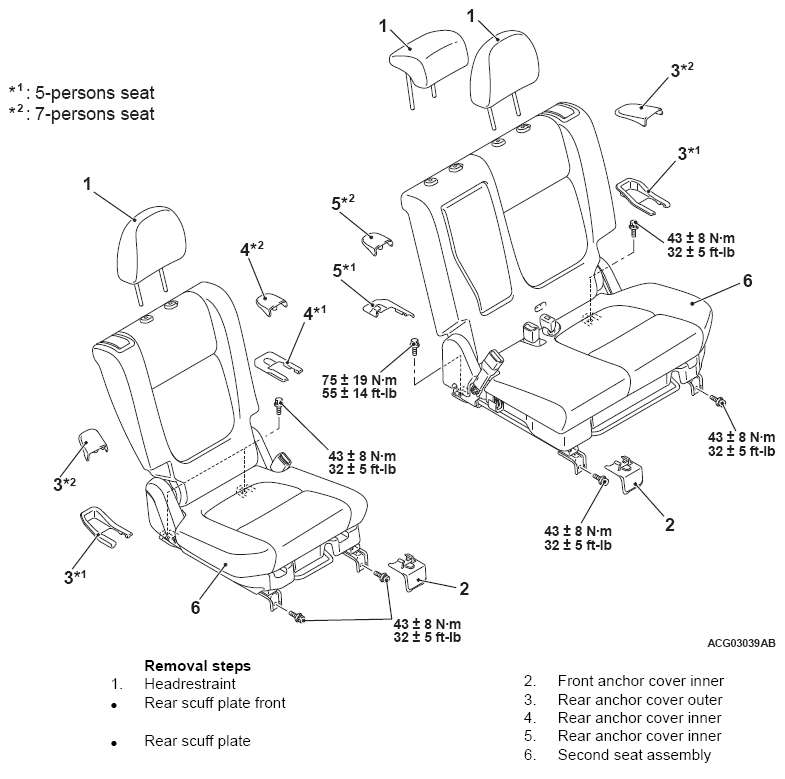

Fig 1: Removing/Installing Second Seat Assembly Components Location With Torque Specification
G13498585Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
