REMOVAL AND INSTALLATION <3.0L Engine>: Overview

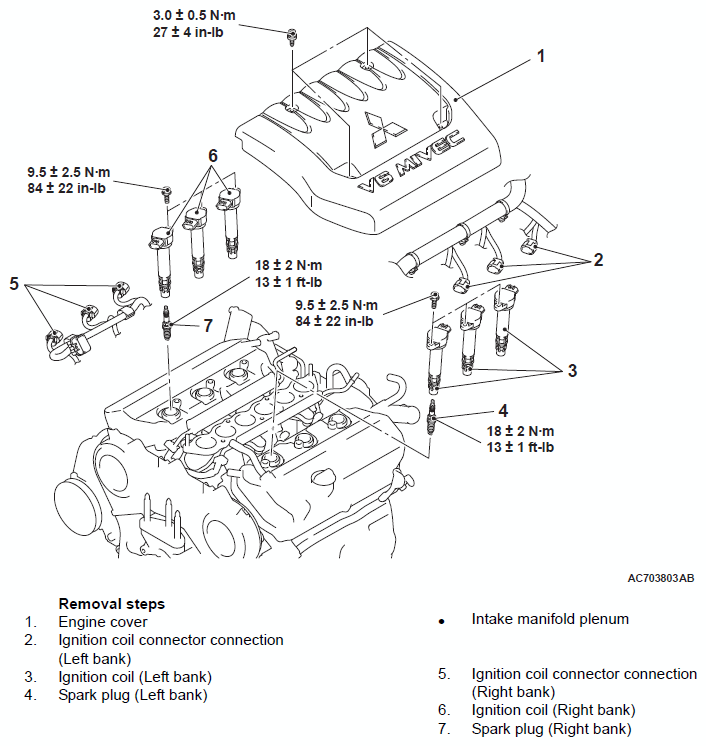

Fig 1: Removing/Installing Ignition Coil Components Location With Torque Specification (3.0L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Pre-removal operation  Engine Room Side Cover (RH) Removal (Refer to UNDER COVER ).

Post-installation operation  Engine Room Side Cover (RH) Installation (Refer to UNDER COVER ).

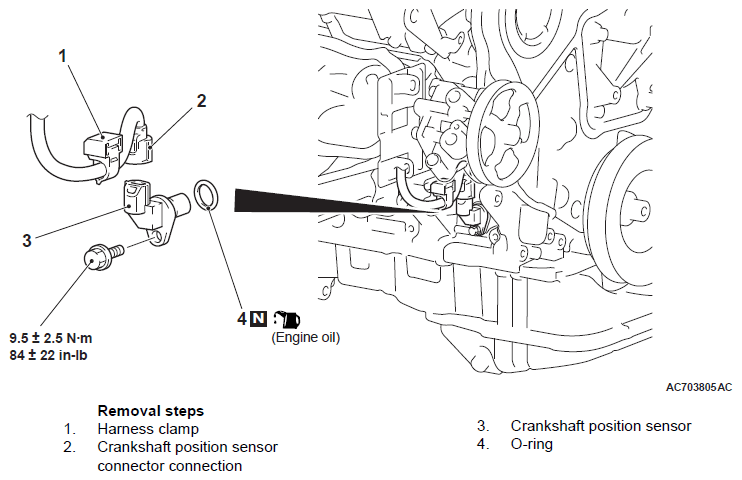

Fig 1: Removing/Installing Crankshaft Position Sensor Components Location With Torque Specification (3.0L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
