REMOVAL AND INSTALLATION <2.4L Engine>: Overview

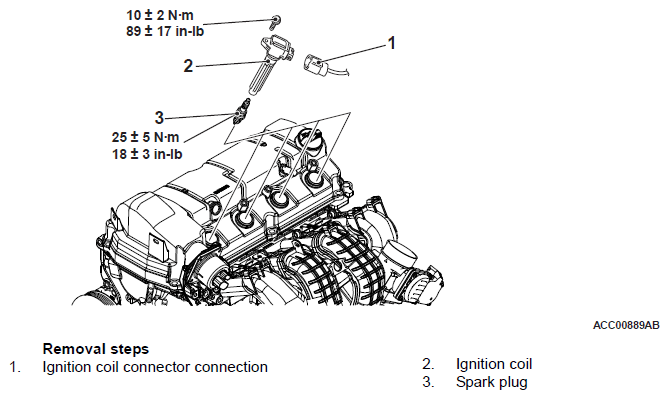

Fig 1: Removing/Installing Ignition Coil Components Location With Torque Specification (2.4L Engine)
G12365765Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

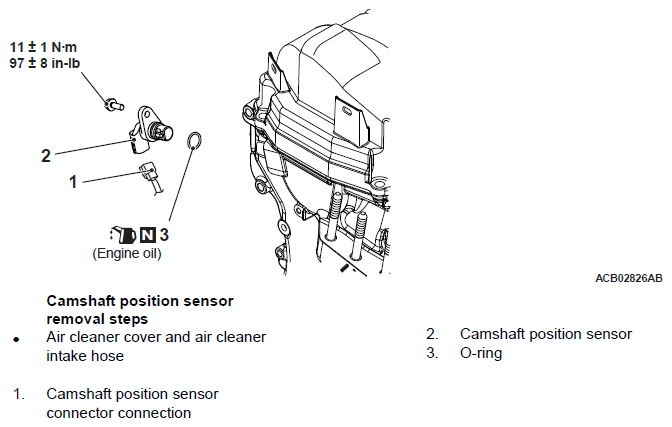

Fig 1: Removing/Installing Camshaft Position Sensor Components Location With Torque Specification (2.4L Engine)
G12365767Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
