Component Location

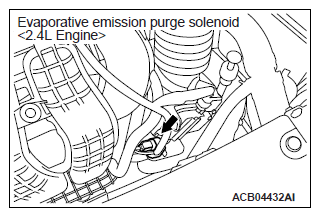

G12365823Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

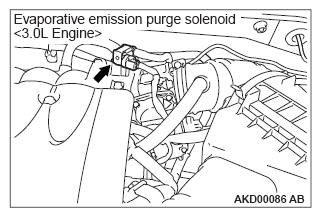

G13496947Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

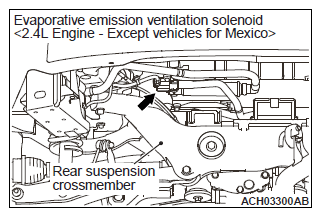

G12365825Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

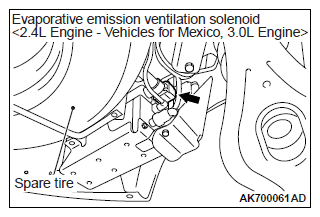

G12365826Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
