Removal And Installation <3.0L Engine>: Notes

Pre-removal Operation  Fuel Discharge Prevention [Refer to FUEL PUMP CONNECTOR DISCONNECTION (HOW TO REDUCE PRESSURIZED FUEL LINES) ]. Intake Manifold Plenum Removal (Refer to INTAKE MANIFOLD PLENUM <3.0L ENGINE>  ).

Post-installation Operation  Intake Manifold Plenum Installation (Refer to INTAKE MANIFOLD PLENUM <3.0L ENGINE>  ). Fuel Leakage Inspection

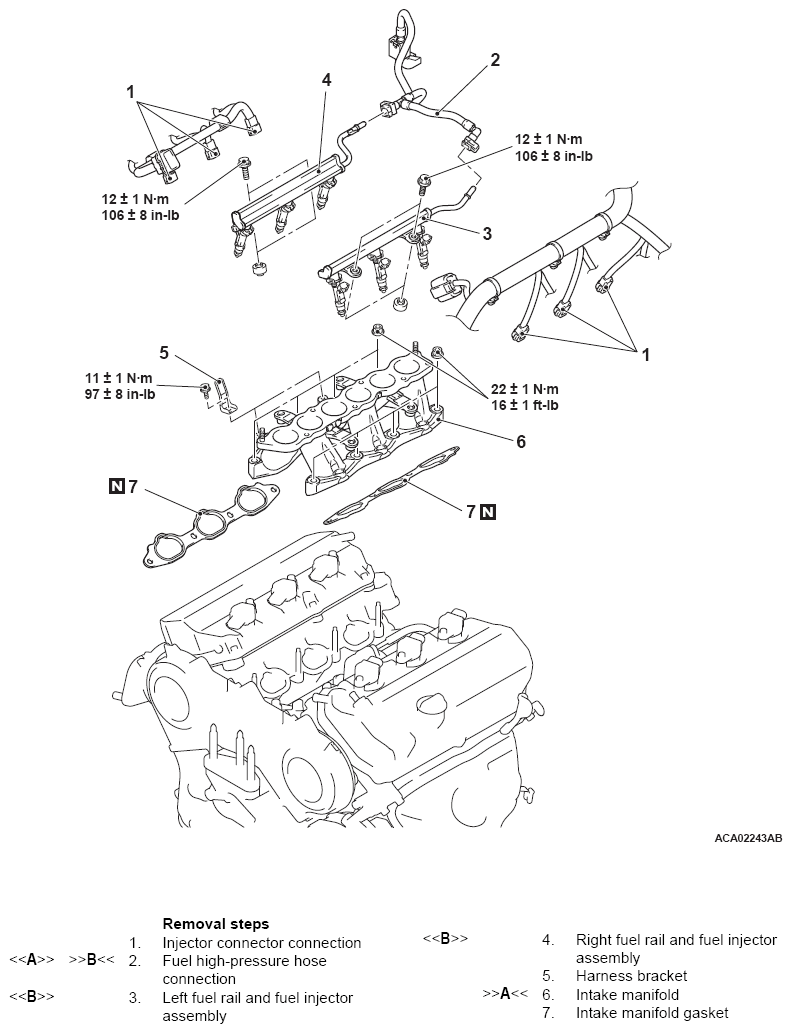

Fig 1: Removing/Installing Intake Manifold Components Location With Torque Specification (3.0L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
