REMOVAL AND INSTALLATION <3.0L Engine>: Notes

Pre-removal and Post-installation Operation  Engine Room Under Cover Front Removal and Installation (Refer to UNDER COVER ).

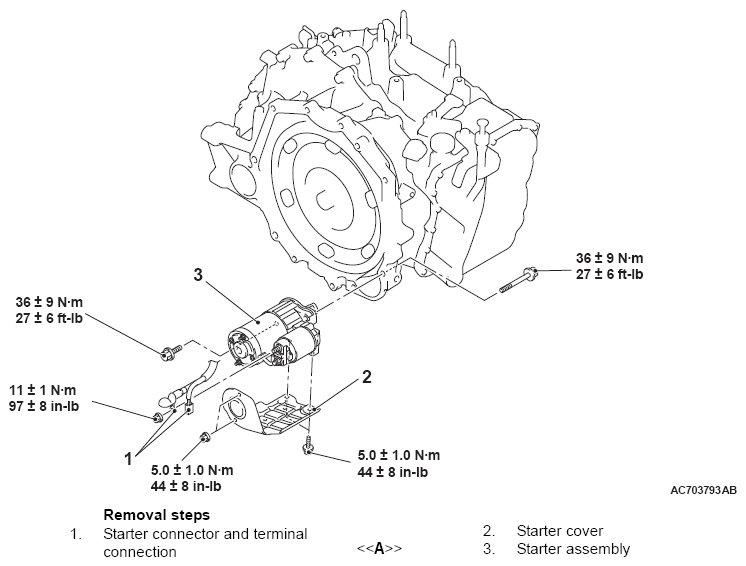

Fig 1: Removing/Installing Starter Motor Assembly Components Location With Torque Specification (3.0L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
