DISASSEMBLY AND REASSEMBLY <2.4L Engine>: Notes

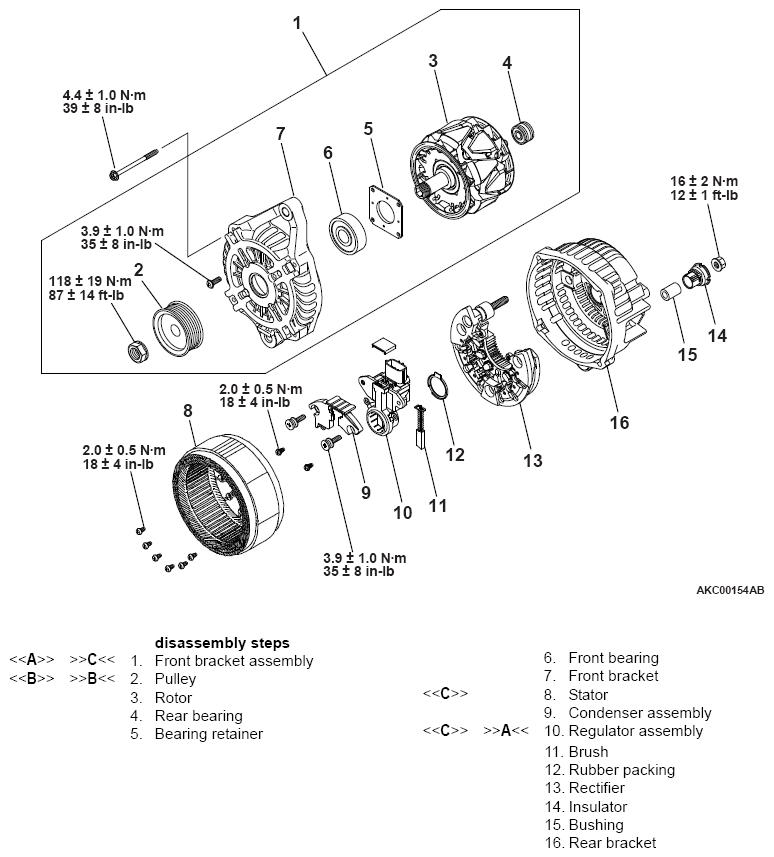

Fig 1: Disassembling/Assembling Front Bracket Assembly Components Location With Torque Specification (2.4L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
