Home >> Mitsubishi >> 2020 >> Outlander SP, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> Configuration Diagrams >> Liftgate

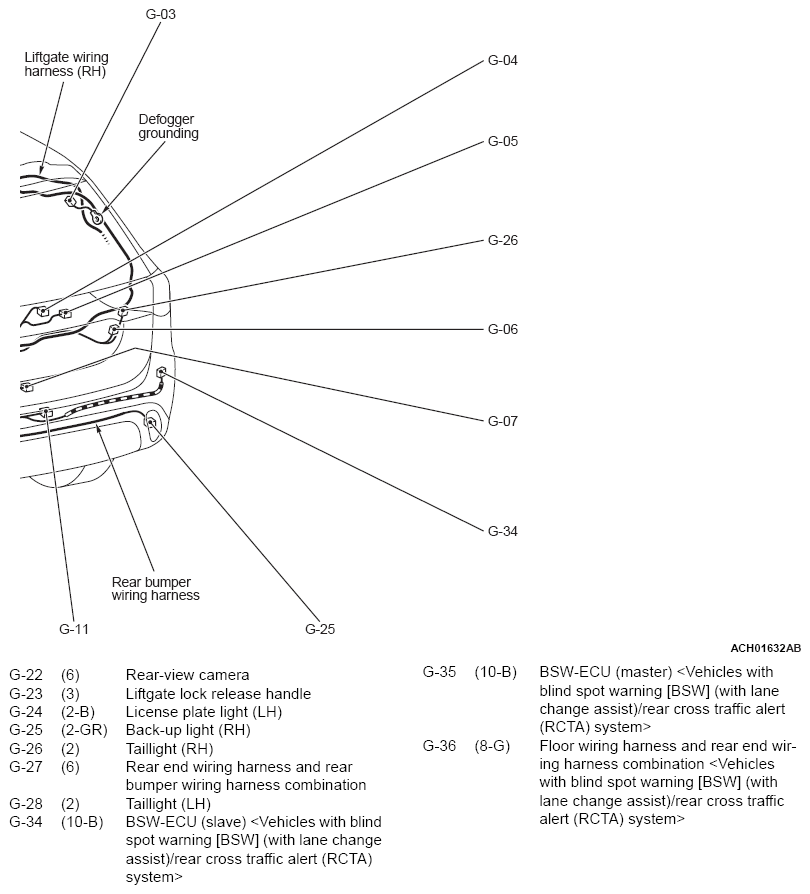

Configuration Diagrams: Liftgate

G13502267

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
