Removal And Installation

CAUTION:

When the battery current sensor and the engine control module are replaced, make the battery current sensor learn the neutral point by using the scan tool. (Refer to BATTERY CURRENT SENSOR CALIBRATION <2.4L ENGINE> .)

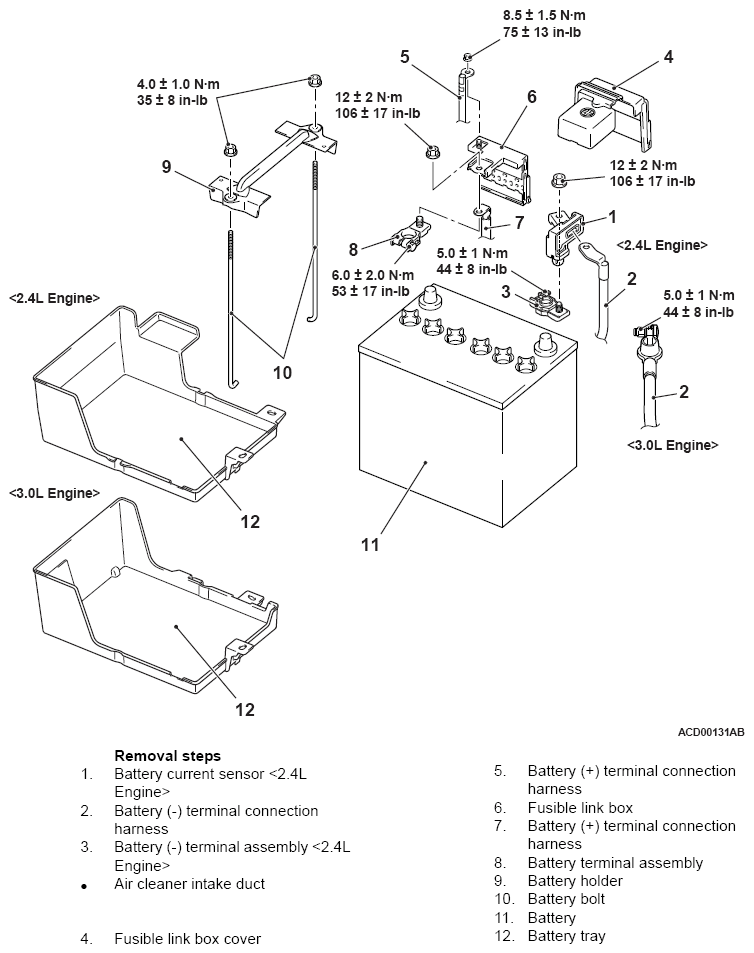

Fig 1: Removing/Installing Battery Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
